Chongqing Great Well Magnet Co.,ltd.
| Place of Origin: | Chongqing, China |
|---|---|
| Model Number: | SmCo Magnet |
| Minimum Order Quantity: | 100 Set/Sets |
| Price: | $0.02 - $10.00 / Set |
| Packaging Details: | Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton. |
| Supply Ability: | 5000000 Set/Sets per Month |
| Type: | Permanent, Permanent | Composite: | SmCo Magnet, Rare Earth Magnet |
|---|---|---|---|
| Shape: | Disc, Disc | Application: | Industrial Magnet |
| Tolerance: | ±20%, +/-0.05mm | Processing Service: | Cutting |
| Grade: | SmCo Magnet, Y25, Y30, Y32, Y35 Etc | Size: | Customized Magnet Size |
| Color: | Black | Packing: | Standard Carton Box For Export, Anti-magnetism Packaging |
| Max Working Temperature: | 350 | Usage: | Motor Magnet |
| Port: | Shanghai | ||
| Highlight: | smco ring magnets,Yxg30 smco ring magnets,smco stator magnet |
||

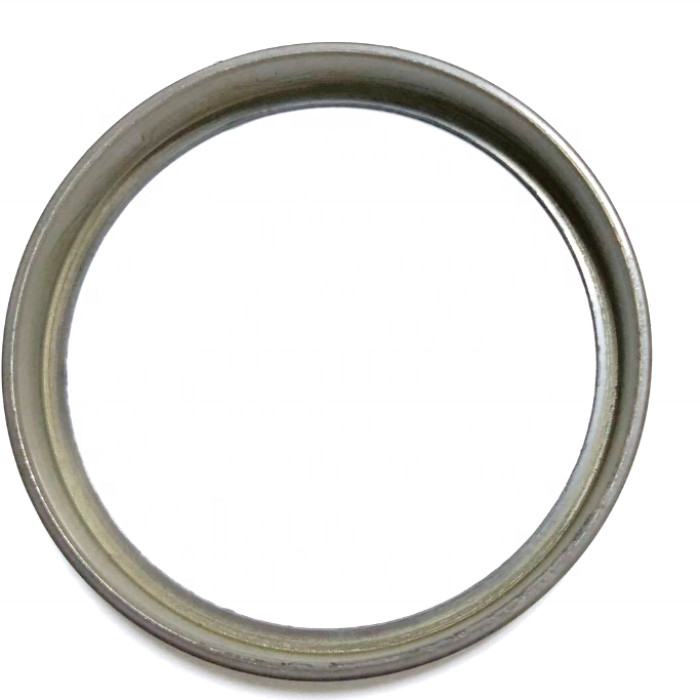

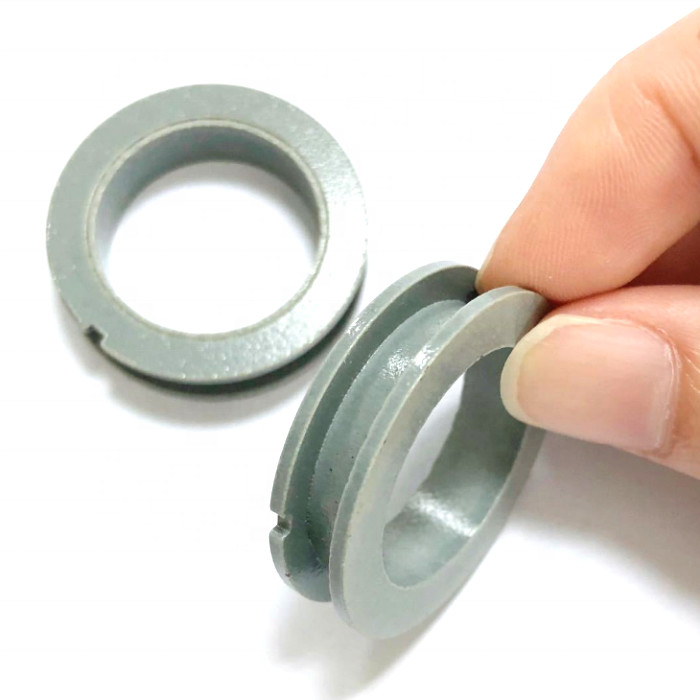

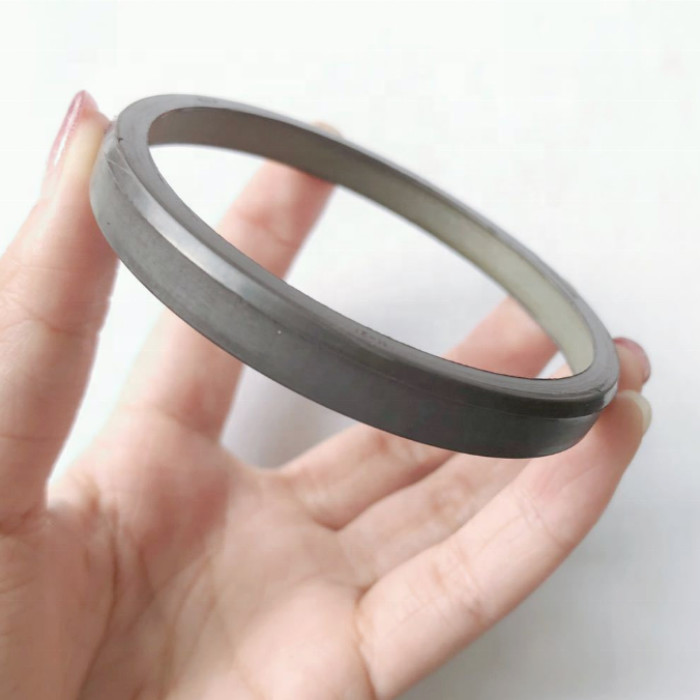

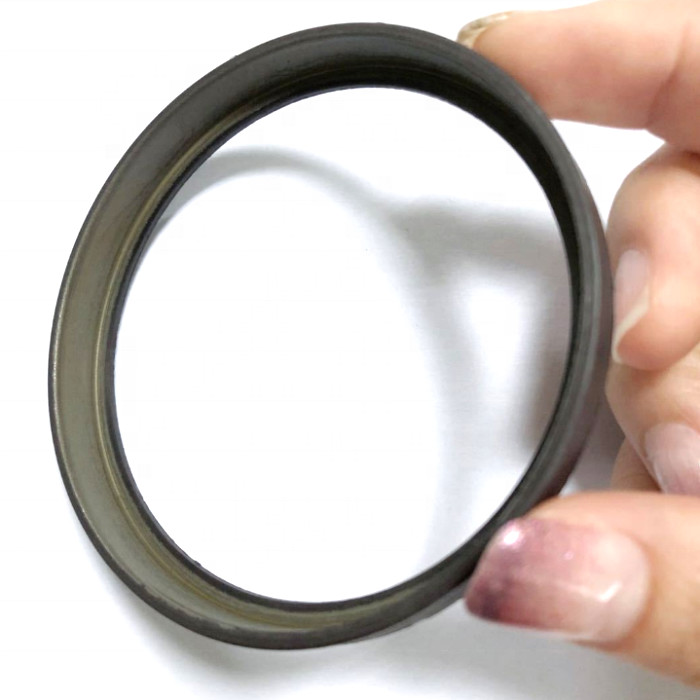

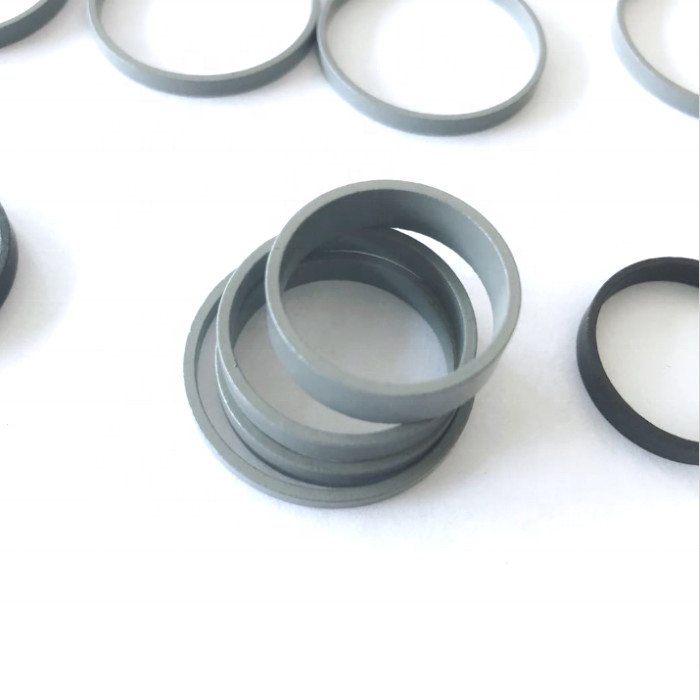

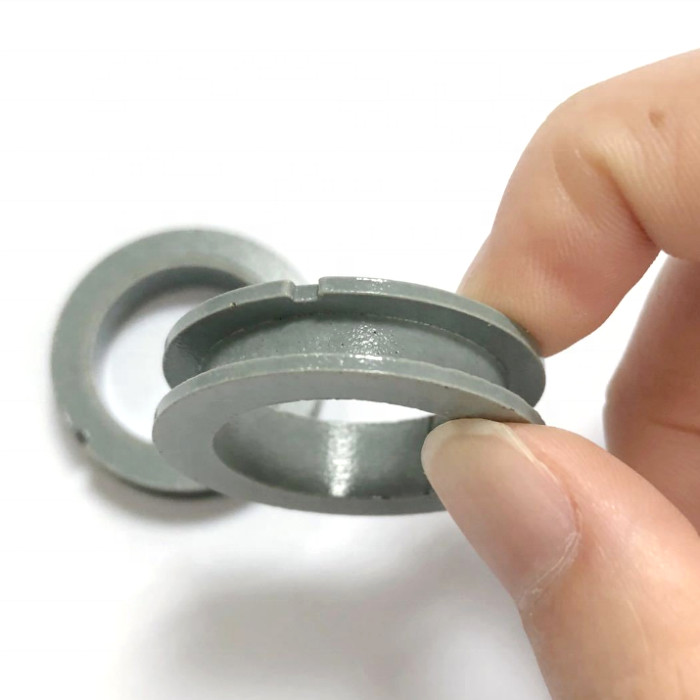

Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor
Application
The strongest magnet was samarium cobalt magnet developed in Europe and America. Now both magnets are used as parts of small engines or loudspeakers. The reason why many machines can be miniaturized can also be attributed to the small and powerful magnets. It is a rare earth permanent magnet with strong corrosion resistance and oxidation resistance. Due to the high price of materials, its development is limited. It is mainly used in aerospace, national defense and military industry, microwave devices, communication, medical equipment, instruments, meters, various magnetic transmission devices, magnetic processors, sensors, motors, magnetic cranes, etc.
|
Product Name
|
Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor
|
|
Product Materials
|
Samarium Cobalt Magnet
|
|
Product Materials
|
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
|
|
Size of the products
|
Accept Customized
|
|
Working Temp
|
350°C
|
|
Magnetic direction
|
Through thickness direction, the flat surface is magnetic field.
|
|
Vertical pull force
|
can pull on metal board more than 19pieces A4 paper
|
|
Testing method
|
manual testing
|
|
Application
|
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail
|
Specification
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Working Temp. | Density | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tw | D | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/°C | %/°C | °C | g/cm3 | |
| SmCo5 16A | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >16.0 | >1270 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 16B | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 18A | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 18B | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 20A | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 20B | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 22A | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 22B | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| Sm2Co17 24 | 24 | 195 | 10 | 1000 | 9.5 | 760 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26A | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26B | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26H | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >26.0 | >2067 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co1728A | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 28B | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 28H | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >26.0 | >2067 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 30A | 30 | 243.8 | 11 | 1100 | 10.2 | 816 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 30B | 30 | 243.8 | 11.2 | 1120 | 10.2 | 816 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 32 | 31 | 251.8 | 11.5 | 1150 | 10 | 800 | >15.0 | >1192 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 25H | 25 | 203.2 | 10.5 | 1050 | 9.7 | 776 | >35.0 | >2782 | -0.03 | 0.23 | 375 | 8.3 |
