| Model Number: | SmCo Magnet |
| MOQ: | 100 Set/Sets |
| Price: | $0.02 - $10.00 / Set |
| Packaging Details: | Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton. |

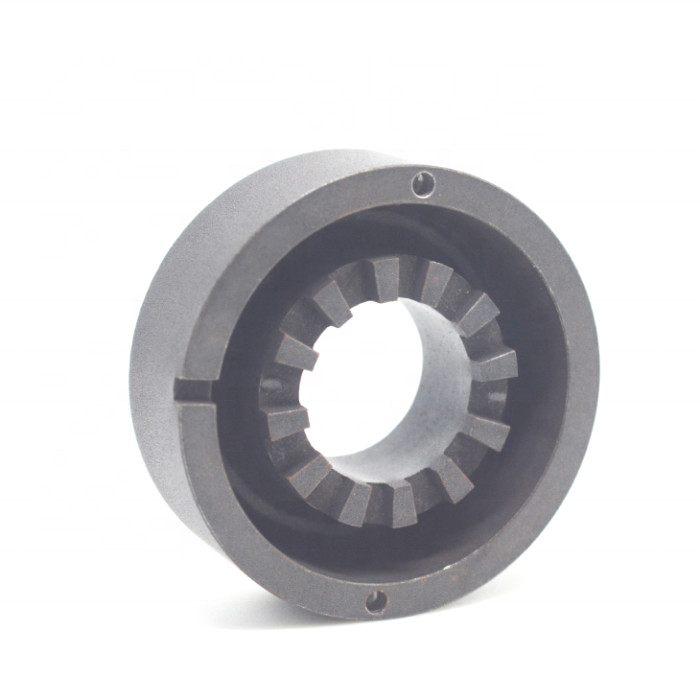

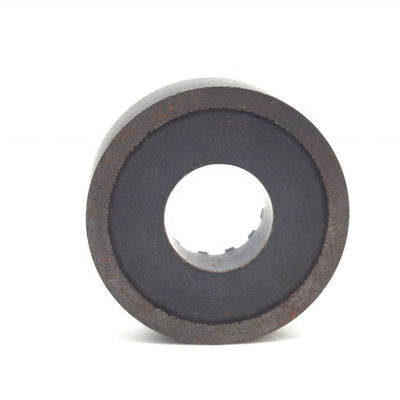

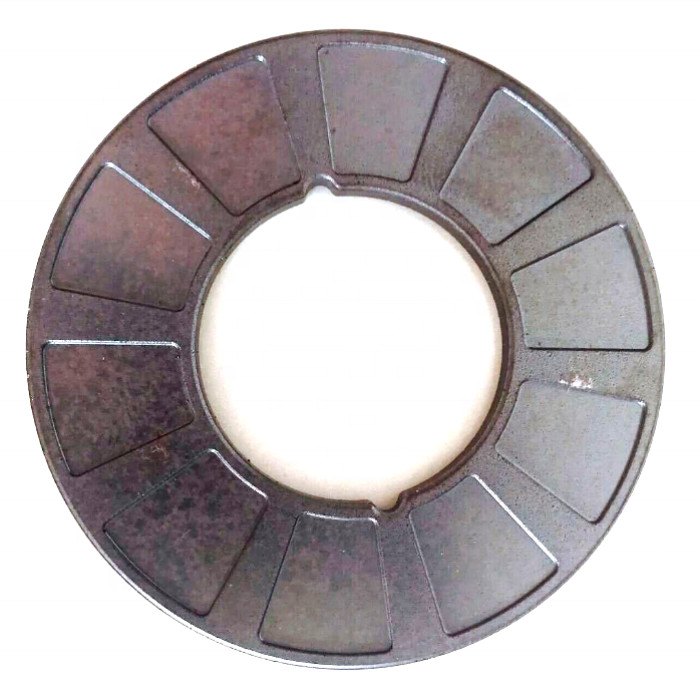

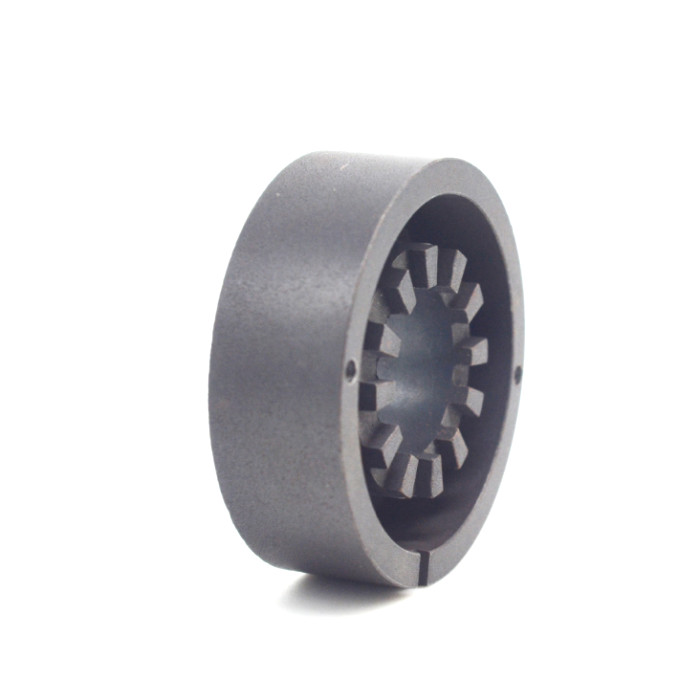

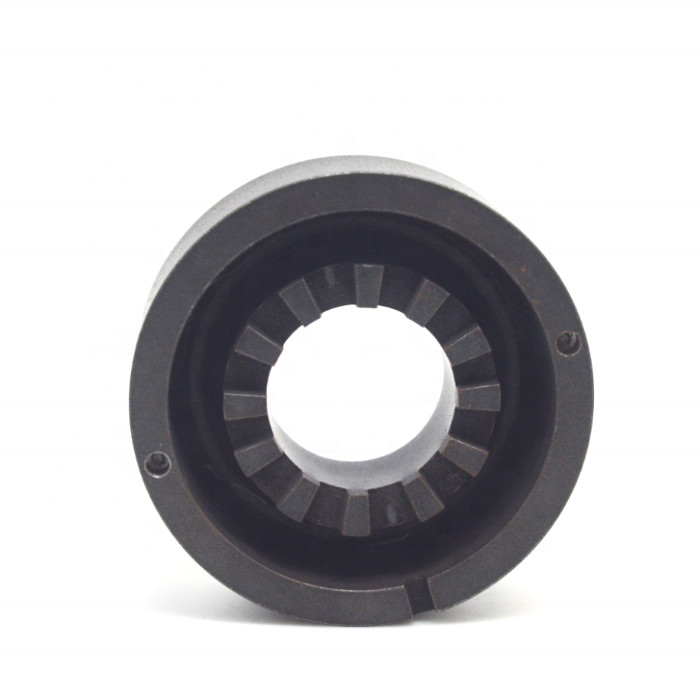

Custom 15 Year Experience Yxg28 Yxg30 Smco Mini Ring Magnet Stator
Application of SmCo magnets:
SmCo magnets, due to their properties, are most commonly used in applications requiring high operating temperatures, such as generators, pump couplings, sensors, motors, marine applications, as well as automotive, racing, aerospace, military and food and manufacturing industries.
|
Product Name
|
Custom 15 Year Experience Yxg28 Yxg30 Smco Mini Ring Magnet Stator
|
|
Product Materials
|
Samarium Cobalt Magnet
|
|
Grade of Magnets
|
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
|
|
Size of the products
|
Accept Customized
|
|
Working Temp
|
350°C
|
|
Magnetic direction
|
Through thickness direction, the flat surface is magnetic field.
|
|
Vertical pull force
|
can pull on metal board more than 19pieces A4 paper
|
|
Testing method
|
manual testing
|
|
Application
|
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail
|
Specification
| Grade | Max. Energy Product | Remanence | Coercive Force | Rev. Temp. Coeff. | Working Temp. | Density | ||||||
| (BH)max | Br | Hc | Hci | Bd | Hd | Tw | D | |||||
| MGOe | kJ/m3 | kG | mT | kOe | kA/m | kOe | kA/m | %/°C | %/°C | °C | g/cm3 | |
| SmCo5 16A | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >16.0 | >1270 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 16B | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 18A | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 18B | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 20A | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 20B | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 22A | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >16.0 | >1272 | -0.05 | 0.25 | 250 | 8.4 |
| SmCo5 22B | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >20.0 | >1590 | -0.05 | 0.25 | 250 | 8.4 |
| Sm2Co17 24 | 24 | 195 | 10 | 1000 | 9.5 | 760 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26A | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26B | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 26H | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >26.0 | >2067 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co1728A | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 28B | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 28H | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >26.0 | >2067 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 30A | 30 | 243.8 | 11 | 1100 | 10.2 | 816 | >16.0 | >1272 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 30B | 30 | 243.8 | 11.2 | 1120 | 10.2 | 816 | >20.0 | >1590 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 32 | 31 | 251.8 | 11.5 | 1150 | 10 | 800 | >15.0 | >1192 | -0.03 | 0.23 | 300 | 8.3 |
| Sm2Co17 25H | 25 | 203.2 | 10.5 | 1050 | 9.7 | 776 | >35.0 | >2782 | -0.03 | 0.23 | 375 | 8.3 |
|
|
