Chongqing Great Well Magnet Co.,ltd.
| Place of Origin: | Chongqing, China |
|---|---|
| Model Number: | SmCo Magnet |
| Minimum Order Quantity: | 100 Set/Sets |
| Price: | $0.02 - $10.00 / Set |
| Packaging Details: | Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton. |
| Supply Ability: | 5000000 Set/Sets per Month |
| Type: | Permanent, Permanent | Composite: | SmCo Magnet, Rare Earth Magnet |
|---|---|---|---|
| Shape: | Disc, Disc | Application: | Industrial Magnet |
| Tolerance: | ±20%, +/-0.05mm | Processing Service: | Cutting |
| Grade: | SmCo Magnet, Y25, Y30, Y32, Y35 Etc | Size: | Customized Magnet Size |
| Color: | Black | Packing: | Standard Carton Box For Export, Anti-magnetism Packaging |
| Max Working Temperature: | 350 | Usage: | Motor Magnet |
| Port: | Shanghai | ||
| Highlight: | Ferrite Samarium Cobalt Magnet,Electro Samarium Cobalt Magnet,Ee40 smco permanent magnets |
||

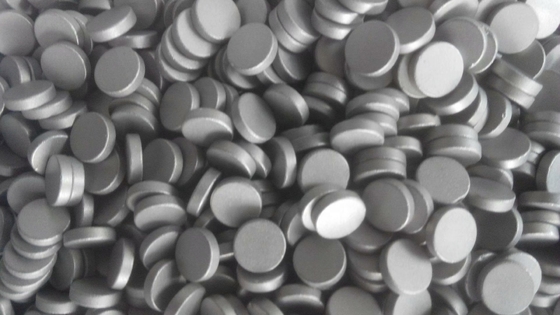

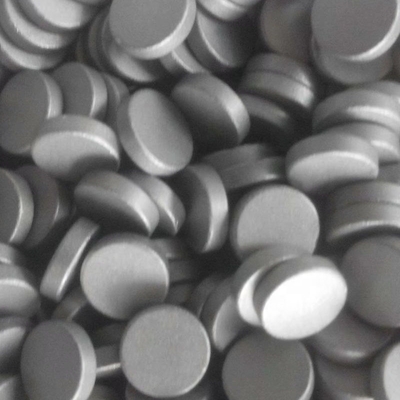

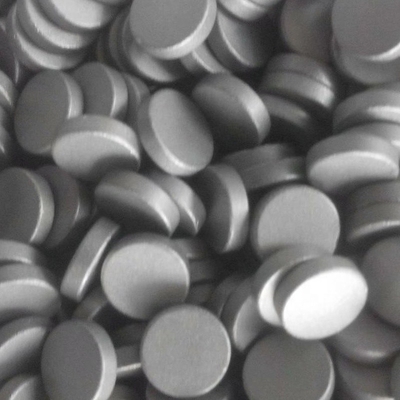

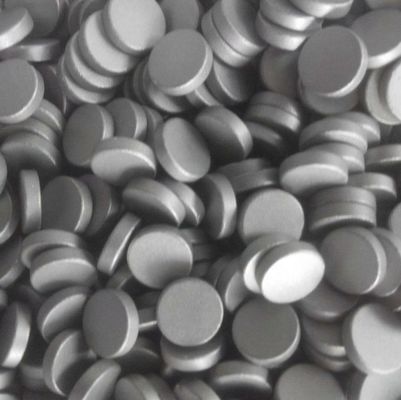

Custom Made Ee40 Ferrite Core Transformer Core Electro SmCo Magnetic
|
Product Name
|
Custom Made Ee40 Ferrite Core Transformer Core Electro SmCo Magnetic
|
|
Product Materials
|
Samarium Cobalt Magnet
|
|
Product Materials
|
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
|
|
Size of the products
|
Accept Customized
|
|
Working Temp
|
350°C
|
|
Magnetic direction
|
Through thickness direction, the flat surface is magnetic field.
|
|
Vertical pull force
|
can pull on metal board more than 19pieces A4 paper
|
|
Testing method
|
manual testing
|
|
Application
|
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail
|
What are the components of samarium and cobalt?
SmCo5 magnet is composed of SmCo alloy with SM CO ratio of 1-5, that is, one SM atom and five co atoms. According to weight, SM accounts for 36% of the total. This SmCo alloy usually contains 36% SM and a small amount of Co. this series of SmCo magnets can provide a maximum magnetic energy product of 25mgoe and a reversible temperature coefficient of - 0.05% / ℃. In addition, this series is easier to calibrate to a specific magnetic field than Sm2Co17 series. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17, i.e. 2 SM atoms and 17 co atoms. It also contains other elements, such as iron, copper, zirconium and hafnium, but the amount is very small. The magnetic energy product of this property is higher, up to 32 mgoe, and the reversible temperature coefficient is - 0.03% / ℃.
The specific proportion is SM: 23-28%; Rare earth metal cobalt: 48-52%; Metallic element Fe: 14-17%; Metal element Cu: 5-7%; A small amount of Zr: 2-3 was added.
