Soft Magnetic Composite (SMC) Components for High Performance Motors

Key Attributes

Place of Origin:china

Certification:ISO/TS16949:2008

Minimum Order Quantity:5000

Price:1-10$

Supply Ability:2000000 pieces per Month

Delivery Time:30days

Payment Terms:T/T

Product Summary

Custom SMC Stator Parts with 3D Flux Path Design Engineered Soft Magnetic Composite (SMC) components featuring advanced 3D magnetic flux architecture and high power density for efficient electric motor applications. Product Overview Soft Magnetic Composites (SMC) represent an innovative solution for ...

Product Details

Shape: Customized

Tolerance: ±10%

Coating: Insulating Layer

Quality System: ISO/TS16949:2008

Specifications: All Shapes

Product Description

Detailed Specifications & Features

Custom SMC Stator Parts with 3D Flux Path Design

Engineered Soft Magnetic Composite (SMC) components featuring advanced 3D magnetic flux architecture and high power density for efficient electric motor applications.

Product Overview

Soft Magnetic Composites (SMC) represent an innovative solution for enhancing motor performance and design across various industries. Next-generation motors are increasingly utilizing SMC materials due to their improved magnetic properties, 3D flux path capabilities, and custom geometry options.

SMC materials consist of iron powder particles coated with an electrically insulating layer, formed into complex shapes through powder metallurgy processes. This manufacturing approach enables three-dimensional magnetic circuit design for optimal performance.

Applications

Automotive Applications

Traction motors
Air conditioning compressors
Pumps (cooling, oil, etc.)
DC/DC converters
On-vehicle chargers

Industrial Applications

Air conditioning compressors
Ventilation fans
Solar power systems
Industrial motor drives
Off-board battery charging

Key Advantages

Compact design - reduced size and weight of components
High performance - meets highest efficiency requirements
Excellent cost efficiency - less material required with net shaping production process minimizing waste
High power density through 3D magnetic flux
Lower eddy current losses at high frequencies compared to lamination steel
Complex shape manufacturing capabilities for enhanced product design
Copper savings, quick response, fast and accurate drive, high-intensity operations

Packaging and Delivery

Port of Dispatch	Shanghai
Selling Units	Single item

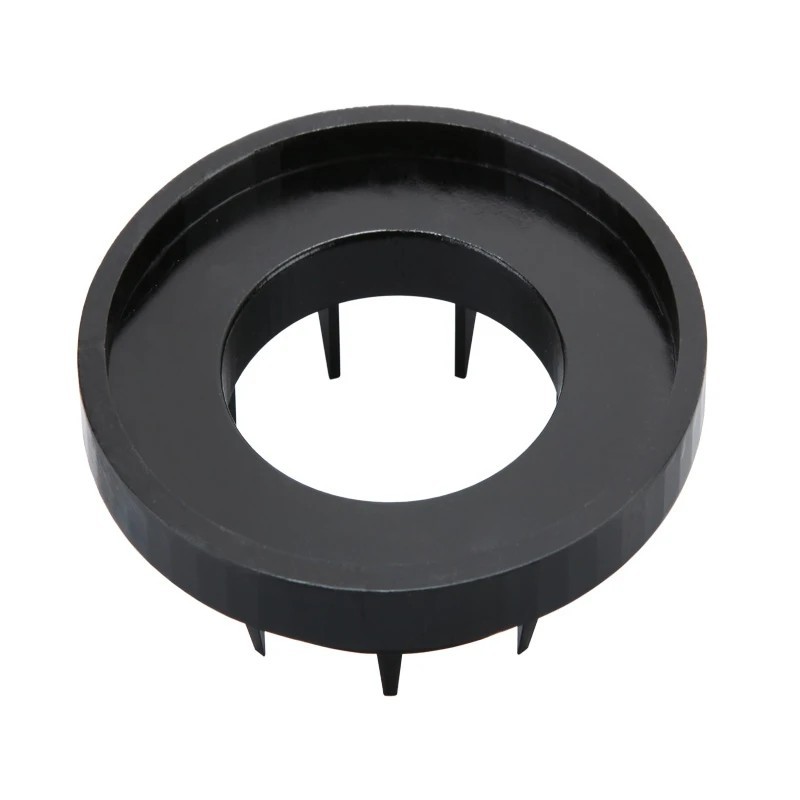

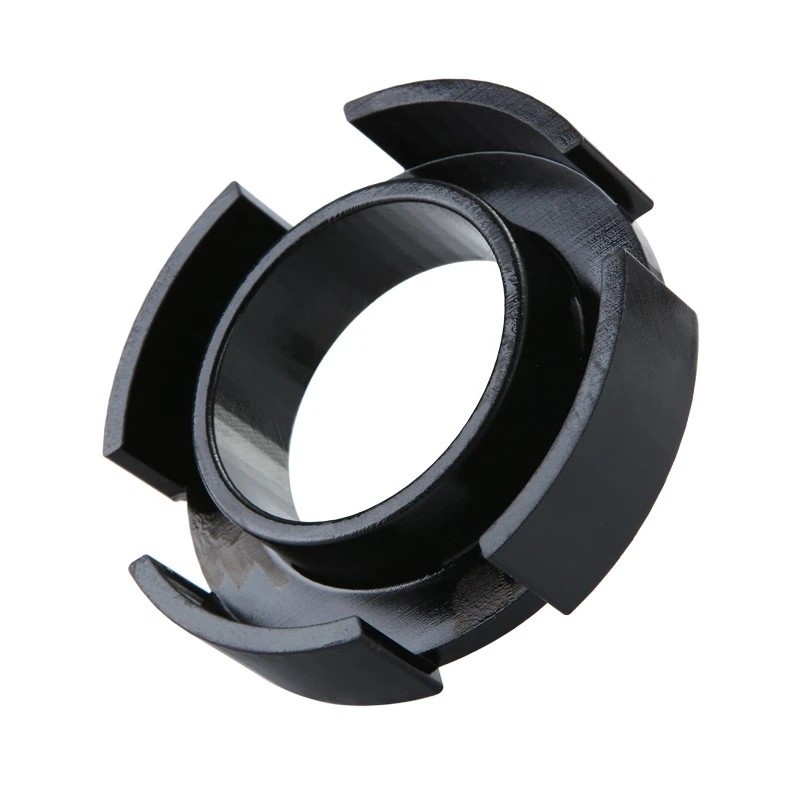

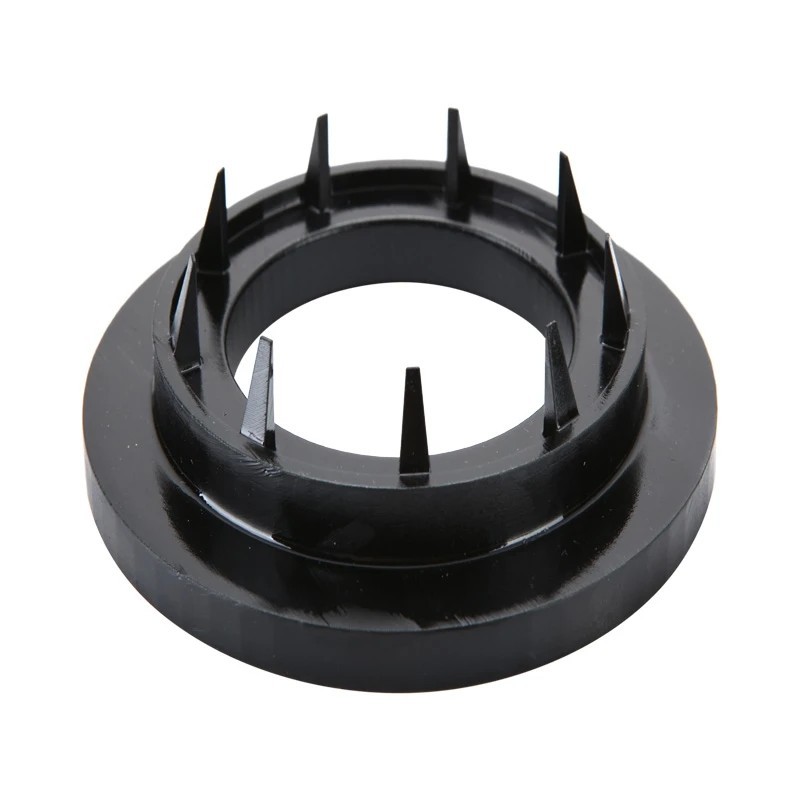

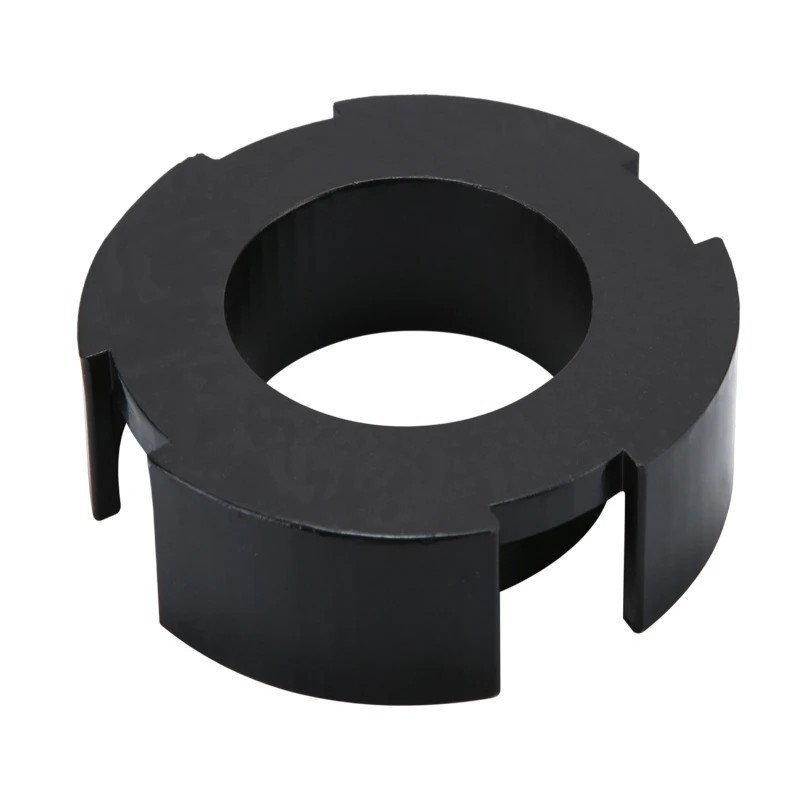

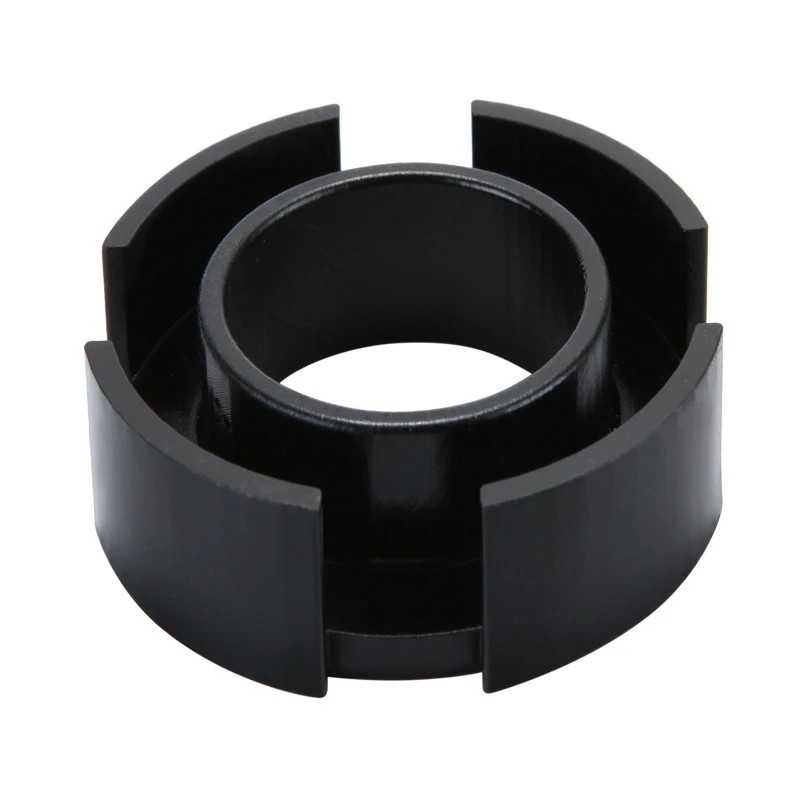

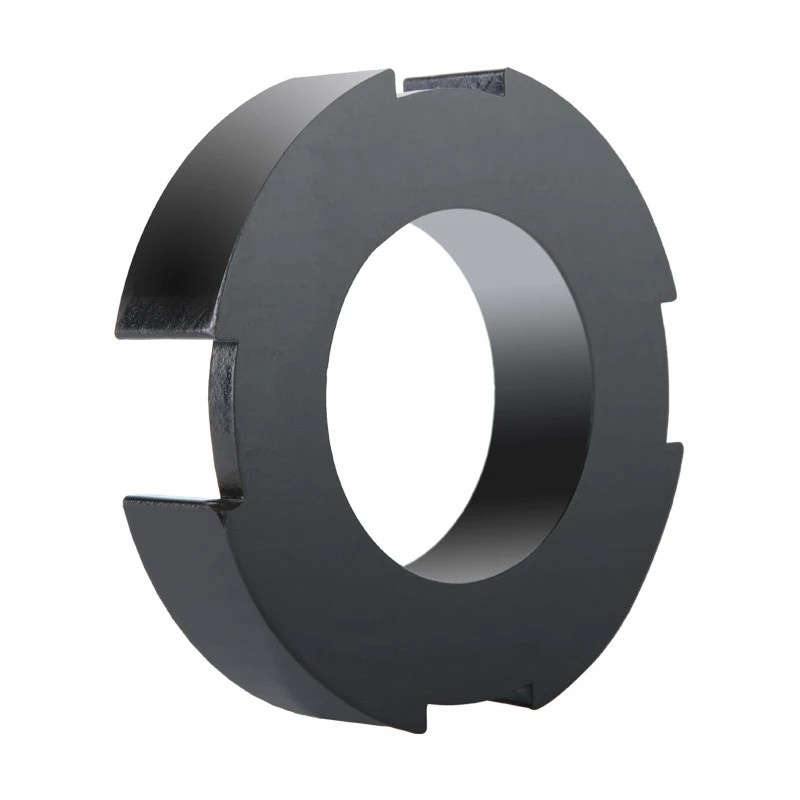

Product Images

Soft Magnetic Composite materials for water pump rotor applications

SMC components showing detailed manufacturing and magnetic properties

High-performance soft magnetic materials for industrial applications

Frequently Asked Questions

Order Information Requirements

We will help you with your order. Usually we ask for the following information:

Product material, size, grade, surface coating, quantities required. If available, provide a sketch or drawing with dimensions and tolerances
Delivered magnetized or unmagnetized? Magnetization direction?
Information on intended application and usage

Can you do OEM and ODM?

OEM and ODM are acceptable. Please inform us of your requirements for reference.

What about the sample lead time and charge?

For OEM or ODM projects, it typically takes 1-2 weeks to calculate charges. For available or in-stock items, samples are shipped within 5-10 days. Final charges depend on your confirmation of the project draft.

How can I place an order?

You can contact us by email with your order details or place orders online.

What's the order procedure?

First, we discuss order and production details via email. Then we issue a Proforma Invoice for your confirmation. Full payment or deposit is required before production begins. Production typically takes 15-25 days for non-stock items. Before completion, we coordinate shipment details and balance payment. After payment settlement, we prepare your shipment.

How can I pay you?

After confirming our PI, we request payment via T/T (HSBC bank), PayPal, or Western Union. L/C, D/A, and D/P are also available.

Can we visit your factory?

Factory visits are highly appreciated. We will send an invitation once your schedule is confirmed.
