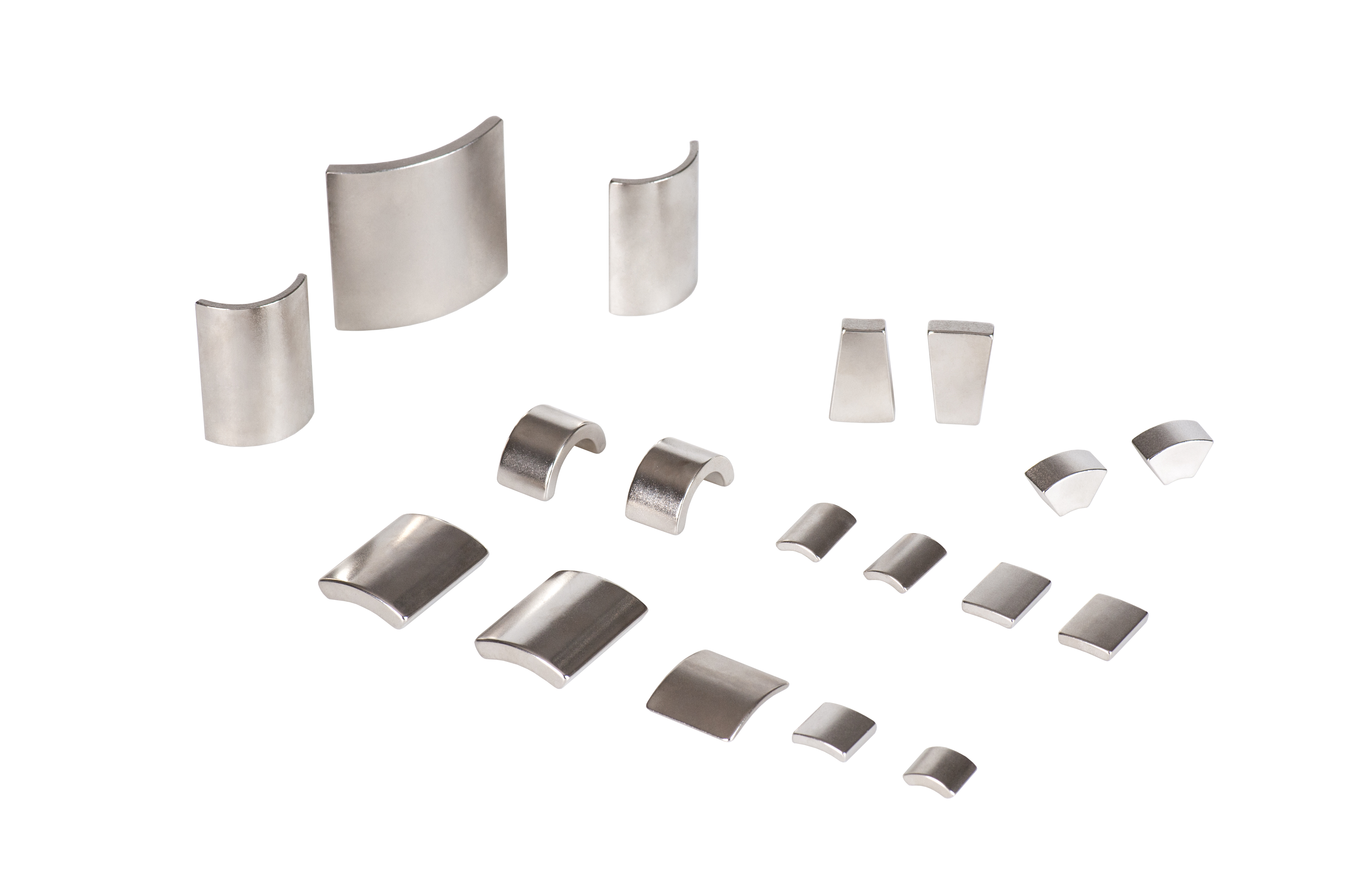

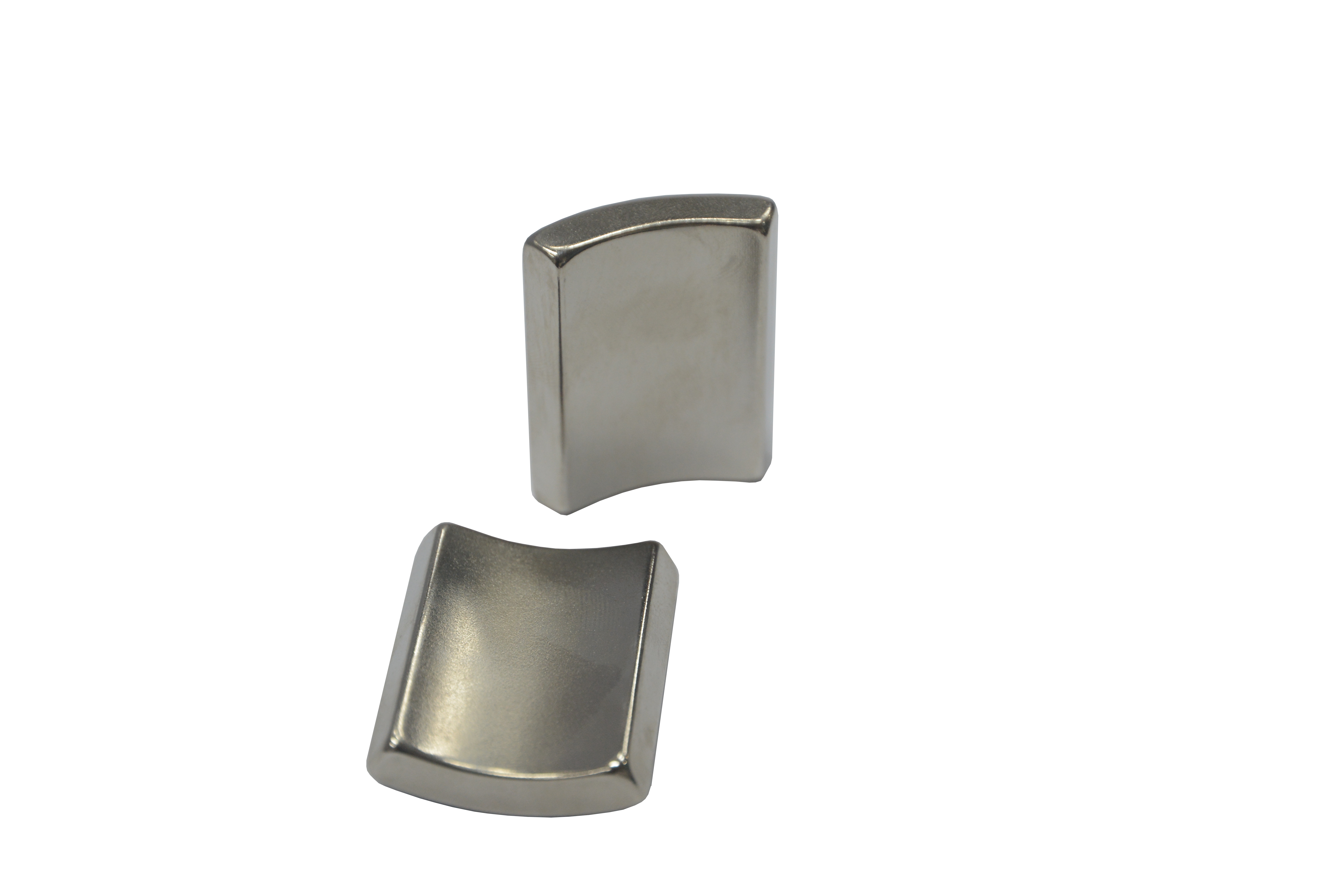

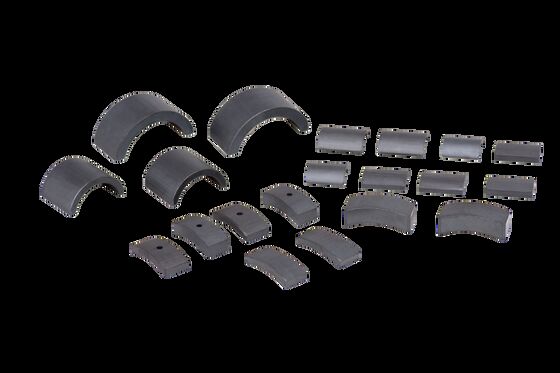

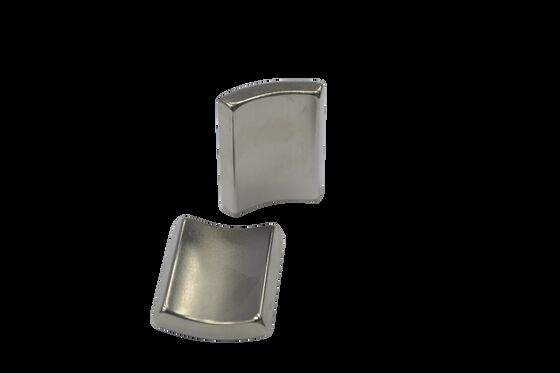

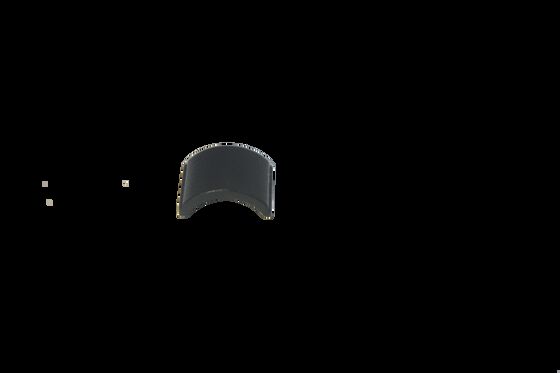

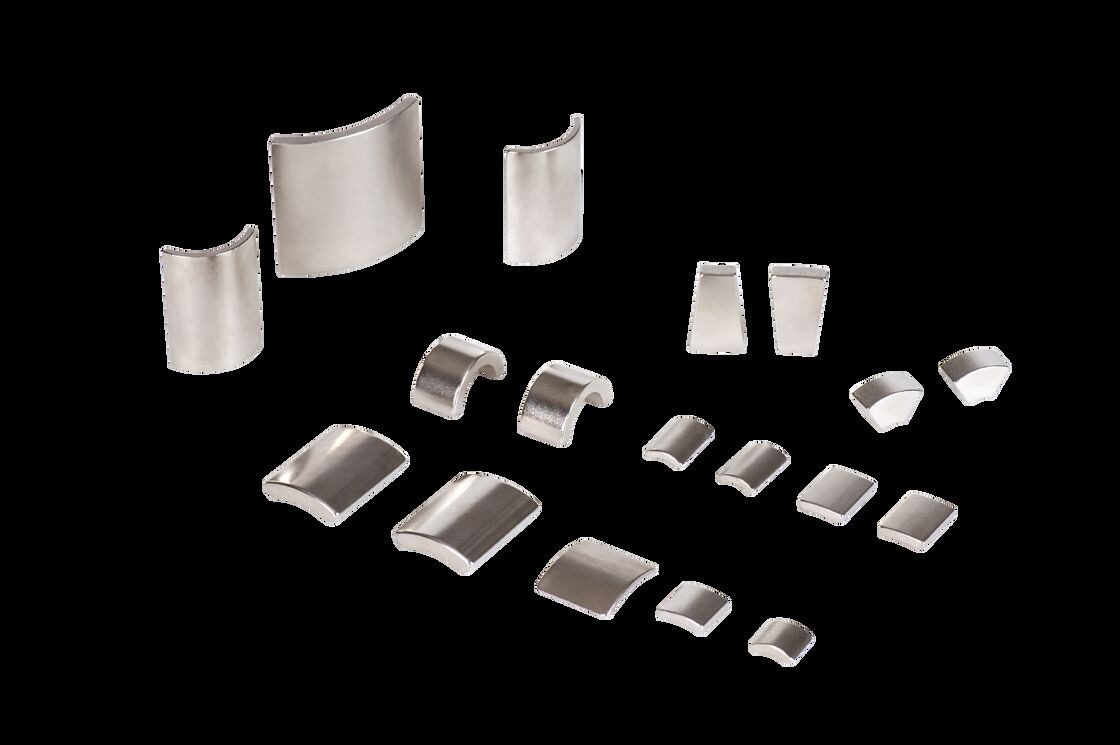

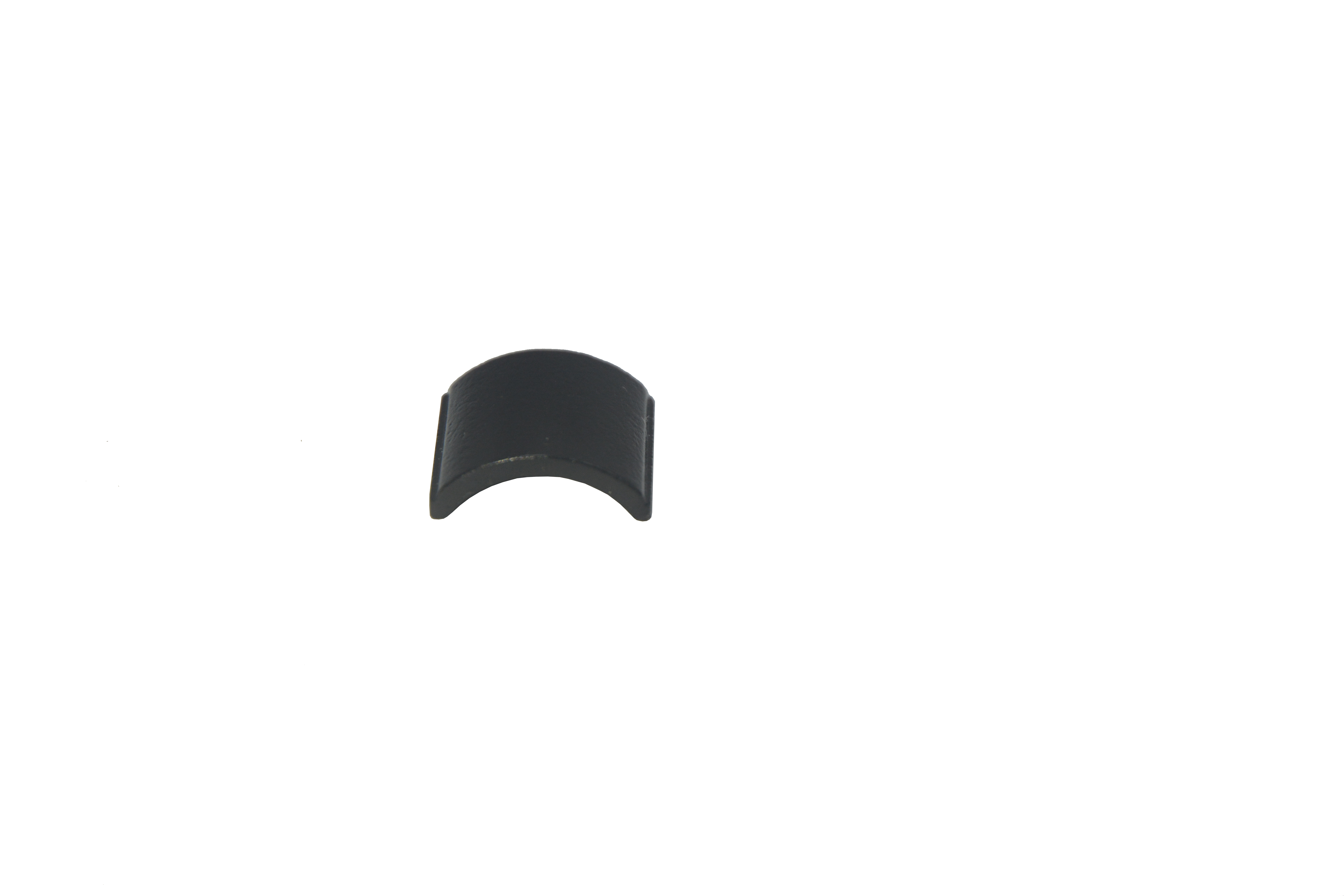

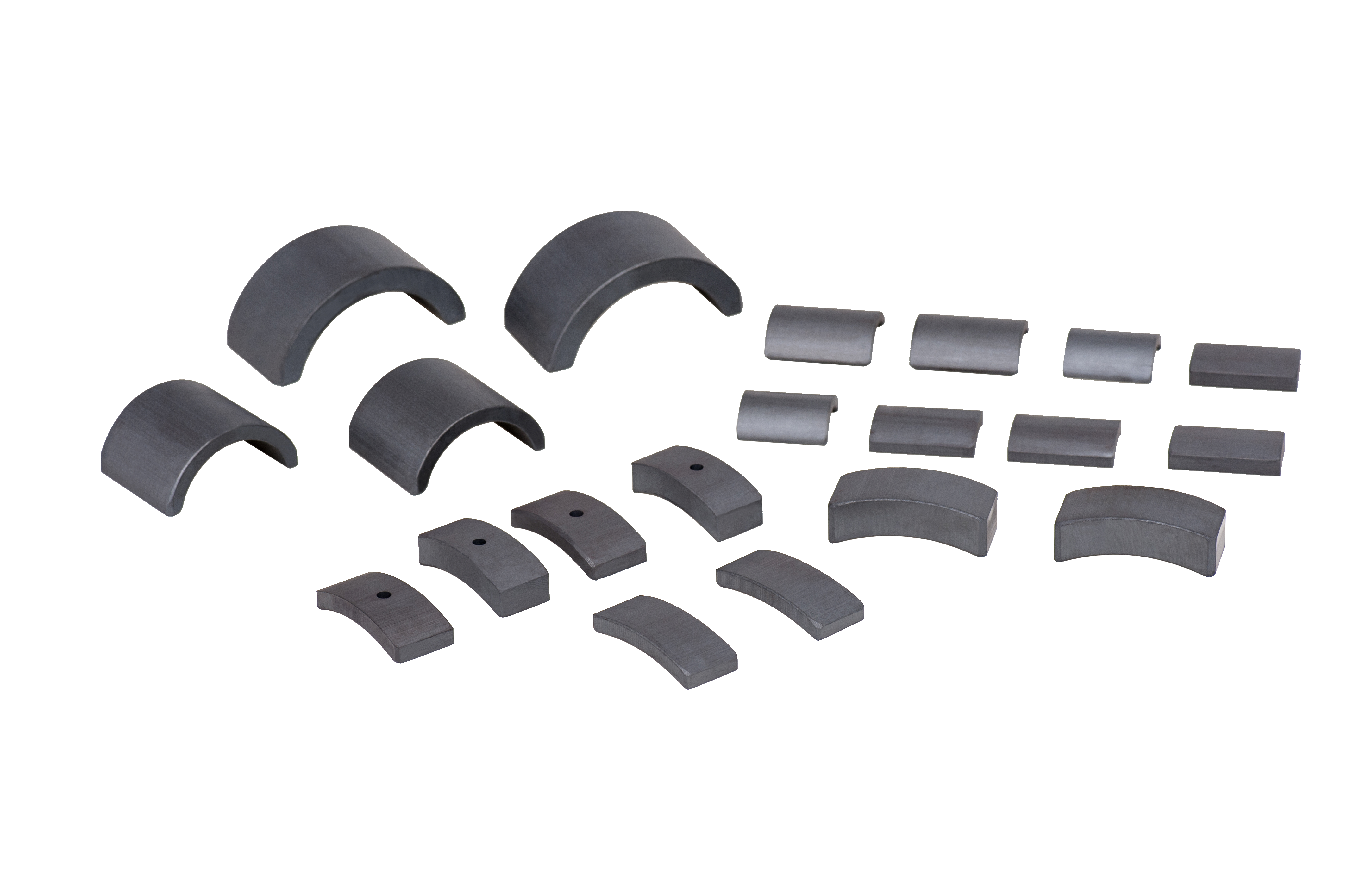

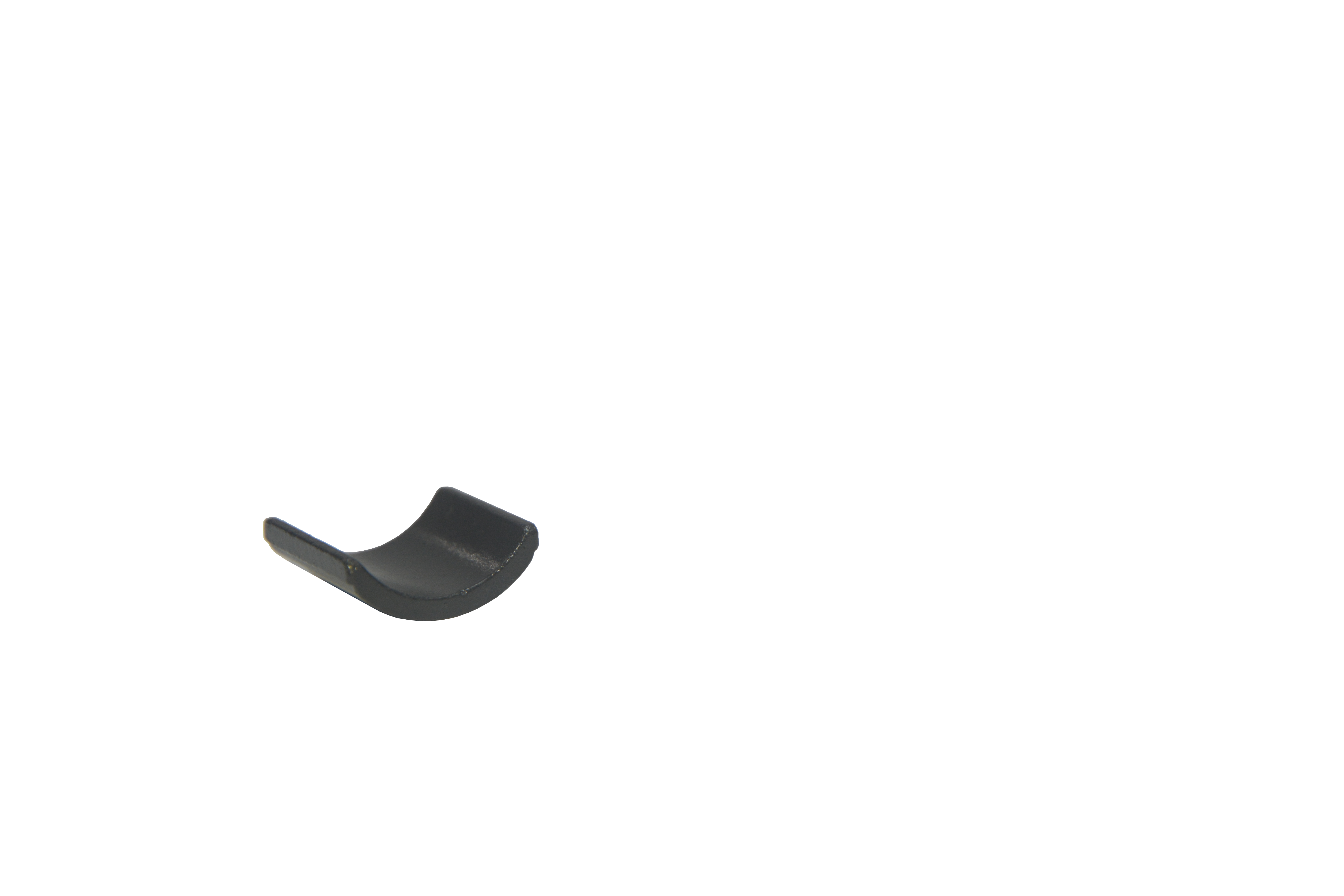

Anisotropic N55 Neo Arc Magnets RoHS

Product Description:

The Custom Permanent Magnetic Assembly is a versatile and high-performance magnetic solution designed to meet a wide range of industrial and commercial applications. Engineered with precision and tailored to specific requirements, this product offers exceptional magnetic properties combined with durable construction, ensuring reliable performance even in demanding environments.



One of the standout features of this magnetic assembly is its broad operating temperature range, which spans from -40°C to 150°C, depending on the type of magnet used. This makes it suitable for applications in environments that experience extreme cold or moderate heat. Additionally, the working temperature of this product can range from 20 to 500 degrees Celsius, providing excellent stability and magnetic strength under various thermal conditions.



Customization is a key aspect of this magnetic assembly. Available in multiple magnet shapes such as ring, block, disc, arc, cylinder, and other custom shapes, it can be tailored to fit unique design specifications. This versatility allows it to cater to different industries including automotive, electronics, medical devices, and industrial machinery, where specific shapes and sizes of magnets are crucial for optimal performance.



The Custom Permanent Magnetic Assembly is predominantly black in color, which not only gives it a sleek and professional appearance but also helps in reducing glare and reflection in sensitive applications.



Manufacturing and processing services for this product include precise cutting techniques that ensure each magnet conforms to exact dimensions and tolerances. This cutting service is essential for creating complex shapes and sizes that meet the exact needs of customers. Whether you require intricate custom shapes or standard forms, the cutting process guarantees high accuracy and quality.



Alnico magnets are known for their excellent temperature stability and resistance to demagnetization, making them ideal for applications requiring consistent magnetic performance under fluctuating thermal conditions. Their robustness and magnetic strength make them a preferred choice in many engineering applications.



Combining the benefits of traditional Alnico Permanent Magnets and modern Injection Molded Magnets, the Custom Permanent Magnetic Assembly delivers a high level of performance tailored to specific operating conditions and design needs. Whether your application demands high-temperature resistance, precise custom shapes, or durable and reliable magnetic strength, this product is engineered to deliver.



Features:

Product Name: Custom Permanent Magnetic Assembly

Color: Black

Assembly Material: Stainless Steel, Aluminum, Plastic, Custom Materials

Magnet Shapes Available: Ring, Block, Disc, Arc, Cylinder, Custom Shapes

Working Temperature Range: 20-500 Degree Celsius

Surface Treatment: Nickel Coating and other options

Includes Customized Magnets tailored to specific requirements

Compatible with Electro Permanent Magnetic Chuck systems

Utilizes Alnico Permanent Magnet technology for reliable performance



Technical Parameters:

Type Permanent, Permanent

Grade SmCo Magnet, Y25, Y30, Y32, Y35 Etc

Packing Carton

Specifications Customize

Working Temperature 20-500 Degree Celcius

Magnet Coating Nickel-Copper-Nickel (Ni-Cu-Ni), Epoxy, Zinc, Gold, Silver

Operating Temperature Range -40°C To 150°C (depending On Magnet Type)

Color Black

Processing Service Cutting

Magnet Shape Ring, Block, Disc, Arc, Cylinder, Custom Shapes



Applications:

Custom Permanent Magnetic Assembly products are highly versatile and designed to meet the specific needs of various industries. These assemblies come in a variety of magnet shapes including ring, block, disc, arc, cylinder, and other custom shapes, allowing for tailored solutions that fit unique design requirements. With an operating temperature range from -40°C to 150°C depending on the magnet type, these magnets provide reliable performance in both extreme cold and high heat environments.



The Custom Permanent Magnetic Assembly is widely used in applications such as motors, sensors, magnetic couplings, magnetic bearings, and medical devices. Sensors utilize these magnetic assemblies for precise detection and measurement, improving accuracy and responsiveness. Magnetic couplings benefit from the strong and stable magnetic fields provided by these assemblies, facilitating seamless torque transmission without physical contact. Magnetic bearings rely on the high-grade SmCo magnets and grades like Y25, Y30, Y32, and Y35 to support rotors with minimal friction, increasing the lifespan and performance of rotating machinery. In the medical field, these magnets are integral to devices requiring precise magnetic properties and biocompatibility.



The availability of different grades such as SmCo magnet and various grades including Y25, Y30, Y32, and Y35 ensures that the magnetic assemblies can be customized to meet specific strength and temperature requirements. Surface treatments like nickel coating enhance corrosion resistance and durability, providing longer service life in demanding environments.



Moreover, the incorporation of injection molded magnets in the manufacturing process allows for the creation of complex shapes and assemblies with tight tolerances and consistent magnetic performance. This capability is crucial for producing customized magnets that fit precisely into advanced technological applications.





Customization:

Our Custom Permanent Magnetic Assembly services offer tailored solutions to meet your specific needs. We provide various magnetization directions including Axial, Radial, Diametrical, and Multi-pole configurations to ensure optimal performance for your application. The assembly materials can be customized from Stainless Steel, Aluminum, Plastic, or any other custom materials to suit your requirements.

Each assembly features a durable surface treatment such as Nickel Coating to enhance corrosion resistance and longevity. The standard color for these assemblies is black, providing a sleek and professional appearance. Our products are designed to operate efficiently within a temperature range of -40°C to 150°C, depending on the magnet type used.

Support and Services:

Our Custom Permanent Magnetic Assembly product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction.



Our experienced technical support team is available to provide expert advice on product selection, customization options, and troubleshooting. We help you integrate the magnetic assemblies into your applications efficiently and effectively.

In addition, we provide custom design services to tailor magnetic assemblies to your specific requirements, ensuring the perfect fit for your unique application needs. Quality assurance and rigorous testing protocols are in place to guarantee the reliability and durability of each assembly.

We also offer repair and replacement services to minimize downtime and maintain operational continuity. Our commitment to customer service means you receive timely and responsive support at every stage.



Packing and Shipping:

Each Custom Permanent Magnetic Assembly is carefully packaged to ensure maximum protection during transit. The product is first wrapped in anti-static and corrosion-resistant materials to prevent any damage or degradation. It is then securely placed in a custom-fitted foam or molded plastic insert inside a sturdy, double-walled cardboard box to minimize movement and absorb shocks.

For larger or heavier assemblies, additional reinforcement such as wooden crates or palletization may be used to provide extra stability and safety. All packages are clearly labeled with handling instructions, product details, and shipping information to ensure proper care throughout the delivery process.

Shipping is handled through reliable carriers with tracking options available, allowing customers to monitor their order status in real time. We also offer expedited shipping services for urgent orders. Our packaging and shipping protocols are designed to deliver your Custom Permanent Magnetic Assembly promptly and in perfect condition.



FAQ:

Q1: What materials are used in the Custom Permanent Magnetic Assembly?

A1: Our Custom Permanent Magnetic Assemblies are typically made from high-quality rare earth materials such as neodymium (NdFeB) or samarium cobalt (SmCo), depending on your specific application requirements.

Q2: Can the magnetic strength be customized for different applications?

A2: Yes, the magnetic strength can be tailored to meet your needs by adjusting the size, shape, and grade of the magnets used in the assembly.

Q3: What shapes and sizes are available for these magnetic assemblies?

A3: We offer a wide range of shapes and sizes, including rings, blocks, discs, and custom geometries to fit your design specifications.

Q4: Are these magnetic assemblies suitable for high-temperature environments?

A4: Yes, depending on the material selected, such as samarium cobalt, our magnetic assemblies can operate reliably at elevated temperatures up to 350°C.

Q5: How precise are the tolerances for the custom magnetic assemblies?

A5: We provide tight dimensional tolerances to ensure the assemblies fit perfectly in your application, typically within ±0.05 mm, but this can be adjusted based on your requirements.
