Chongqing Great Well Magnet Co.,ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | GWM |
| Certification: | IATF16949,ISO140001 |
| Model Number: | GWM-3692 |
| Minimum Order Quantity: | 10 |
| Packaging Details: | Pallet with carton |
| Delivery Time: | 30~45 days |
| Payment Terms: | T/T or L/C |
| Surface Treatment: | Nickel Plating | Size: | Customized |
|---|---|---|---|
| Magnetization Direction: | Axial | Max Energy Product: | ≥12MGOe |
| Shape: | Disc | Residual Induction: | ≥1.2T |
| Flux Density: | ≥1.4T | Application: | Motor, Generator, Automotive |
| Highlight: | 1250kA/M Halbach Array Magnets,Automotive Halbach Array Magnets,Customized Axial Magnetic Coupling |
||

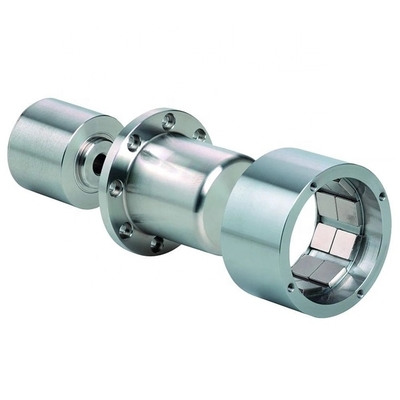

Permanent Magnetic Coupling, also known as magnetic drive coupling, is an advanced technology product that uses permanent magnets to connect the rotor and stator. The permanent magnet is installed in the rotor and stator, and the permanent magnet drives the rotor to rotate by the attraction between the rotor and stator. This technology is widely used in various fields and is known for its high efficiency, energy saving, environmental protection, safety, low noise and long service life.
Our permanent magnetic coupling is made of high quality permanent magnets, rotor, stator and housing. The permanent magnets we use have a residual induction of ≥1.2T and can be customized in terms of pull force, size and surface treatment. The magnetization direction is axial. It is widely used in mechanical and electrical equipment to reduce the transmission loss, improve the transmission efficiency, and reduce the vibration and noise.
| Parameter | Value |
|---|---|
| Operating Temperature | 80℃ - 350℃ |
| Size | Customized |
| Max Working Temperature | 80℃ - 350℃ |
| Application | Motor, Generator, Automotive |
| Shape | Disc |
| Material | Ferrite Magnets, Neo Magnet, SmCo Magnet |
| Residual Induction | ≥1.2T |
| Coercive Force | ≥1250kA/m |
| Flux Density | ≥1.4T |
| Max Energy Product | ≥12MGOe |
GWM Permanent Magnetic Coupling, model GWM-3692, is a product designed and manufactured based on the Halbach array, a special magnetic circuit design. It is ideal for applications requiring a high level of torque transmission efficiency. This product is made of Halbach array permanent magnet, with Residual Induction up to 1.2T and working temperature range from 80℃ to 350℃. With its reliable performance and robust design, this product has been certified by IATF16949 and ISO140001. The minimum order quantity is 10 and the packaging details includes pallet with carton. Delivery time is within 30~45 days and payment terms is T/T or L/C. The size can be customized according to customers' requirements. GWM Permanent Magnetic Coupling is the perfect choice for those who need high torque transmission efficiency.
We provide comprehensive technical support and service for our Permanent Magnetic Coupling products. Our team of experts can help with installation, troubleshooting, and maintenance. We offer a variety of services, including:
We are committed to delivering the highest quality service and support for our Permanent Magnetic Coupling customers. If you have any questions or concerns, please don’t hesitate to contact us.
Packaging and Shipping for Permanent Magnetic Coupling:
The product is securely packaged in a cardboard box to protect it against any damage during transportation. The box is labeled with the product's name, specifications, and other relevant information.
The box is then placed in a shipping container for further protection. A tracking number is provided to the customer for tracking the package.
The shipment is then sent to the customer via a shipping service such as UPS or FedEx.
A1: Permanent Magnetic Coupling is a type of coupling which is used to connect two shafts together and transmit the torque from one shaft to the other. It is composed of a permanent magnet and a ferromagnetic material, allowing the two shafts to connect without any contact.
A2: The brand name of this product is GWM.
A3: The model number of this product is GWM-3692.
A4: This product has IATF16949 and ISO140001 certifications.
A5: The minimum order quantity is 10.
