Flexible Magnetic Coupling for High-End Machine

MOQ: 10 Piece/Pieces
Price: $5.00 - $105.00 / Piece
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Structure:
Gear
Flexible Or Rigid:
Flexible
Standard Or Nonstandard:
Nonstandard
Material:
Neodymium Magnet, Steel
Product Name:
High Performance Magnetic Coupling
Type:
Flexible Clamp Coupling
Application:
Industrial Equipment
Color:
Custom Requirement
Size:
Custom Made
Body Material:
Stainless Steel Aluminum Steel
Surface Treatment:
Zinc Plating
Type Of NdFeB:
N, NM, NH, SH, UH, EH, AH
Working Temperature:
20-500 Degree Celcius
Port:
Shanghai
Supply Ability:
100000 Piece/Pieces per Month
Highlight:

Flexible Magnetic Coupling

Product Description
Product Description

Magnetic coupling is a coupling that transfers torque from one shaft, but using a magnetic field rather than a physical mechanical connection.



Magnetic couplings are most often used for liquid pumps and propeller systems, since a static, physical barrier can be placed between the two shafts to separate the fluid from the motor operating in air. Magnetic couplings preclude the use of shaft seals, which eventually wear out and fail from the sliding of two surfaces against each another. Magnetic couplings are also used for ease of maintenance on systems that typically require precision alignment, when physical shaft couplings are used, since they allow a greater off axis error between the motor and driven shaft.Flexible Magnetic Coupling for High-End Machine 0

Item

Description

1

Outer Rotor

2

Magnet

3

Inner Rotor

4

Spacer Sleeve


1. Materials

Magnet: Neodymium Magnet

Sleeve: Austenite stainless steel, such as SS304, SS316.

Main part: 20# steel, martensitic stainless steel

2. Advantages

Magnetic coupling for standard applications

Hermetically sealed

No contact of torque transmitting elements

No maintenance necessary

High efficient can optional

3. Recommended applications

-Chemical industry

-Oil and gas industry

-Refining technology

-Pharmaceutical industry

-Centrifugal pumps

-Top drive mixers/agitators

4. How does magnetic coupling work?

Flexible Magnetic Coupling for High-End Machine 1

Detailed Images

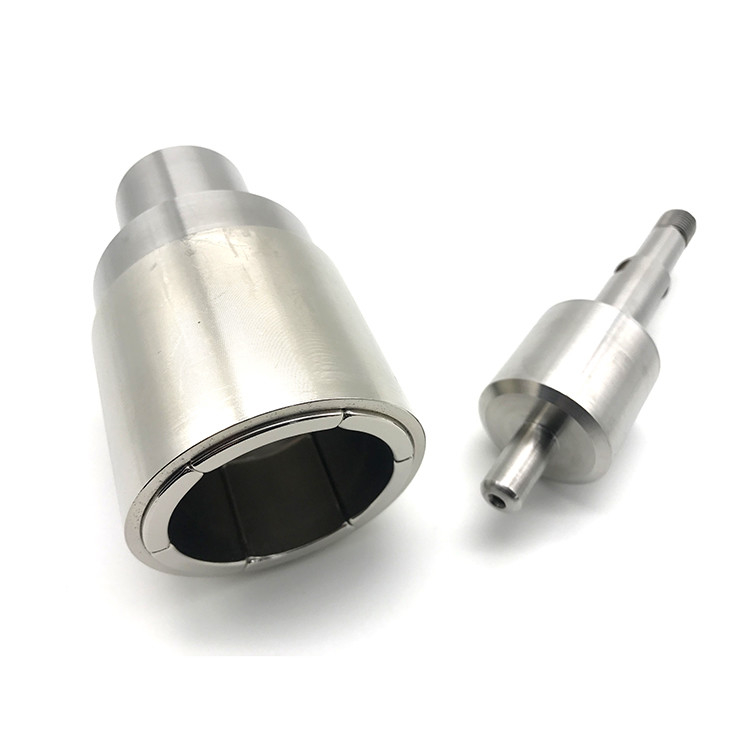

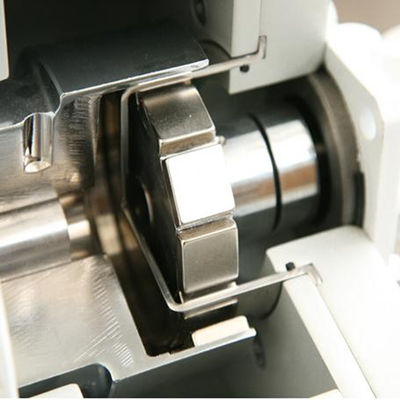

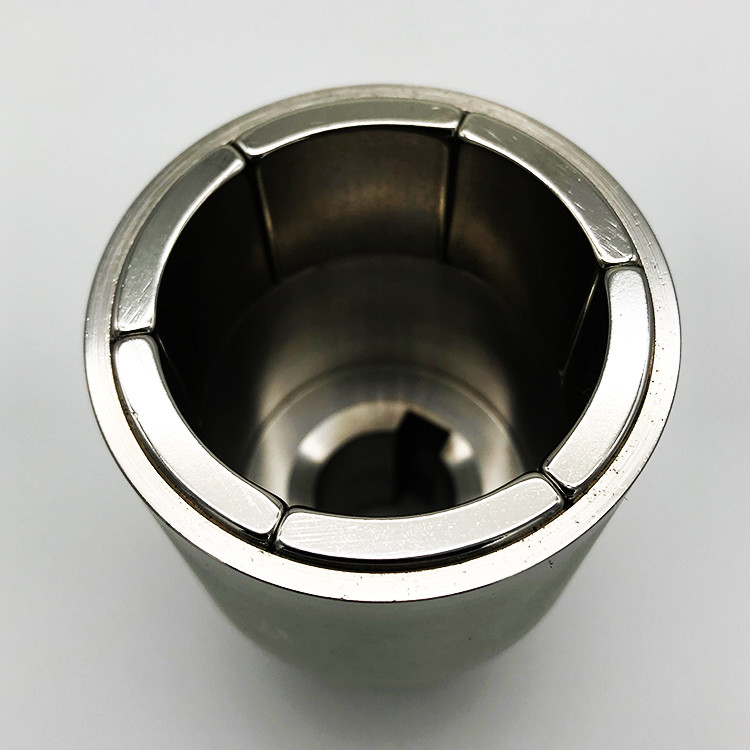

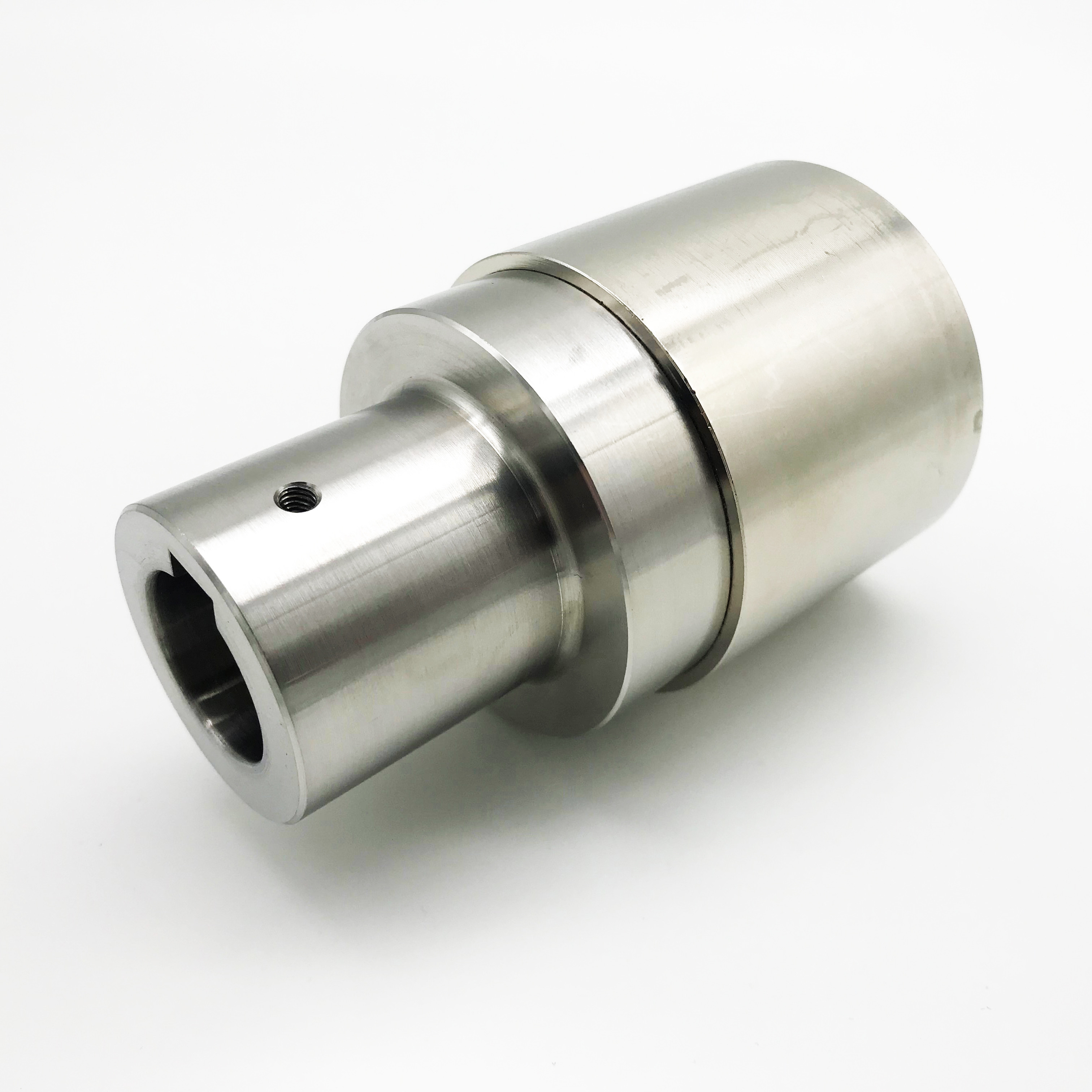

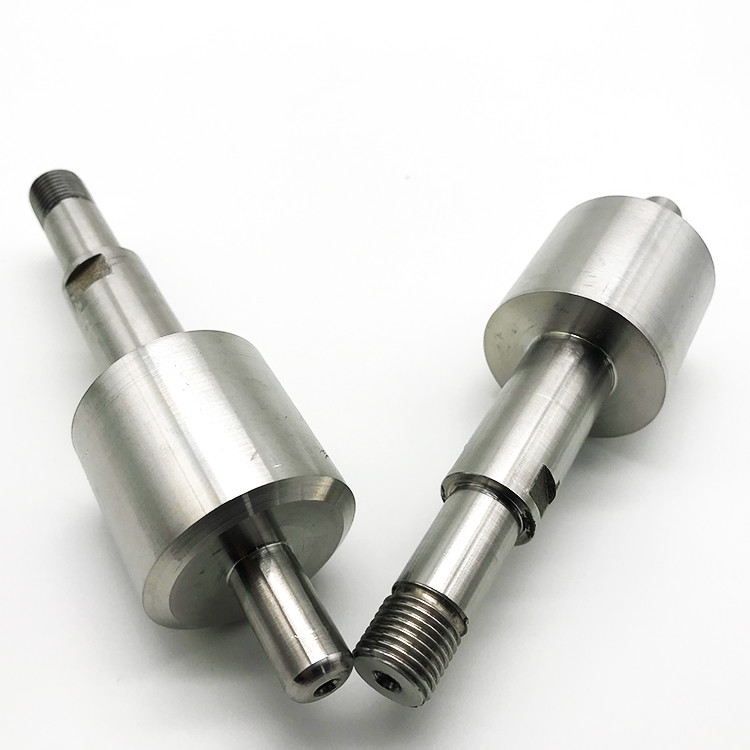

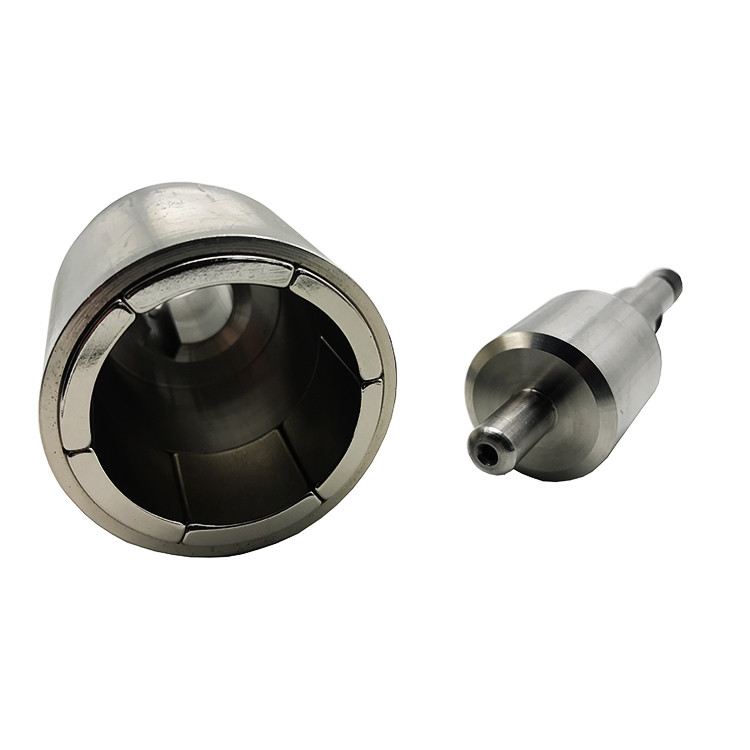

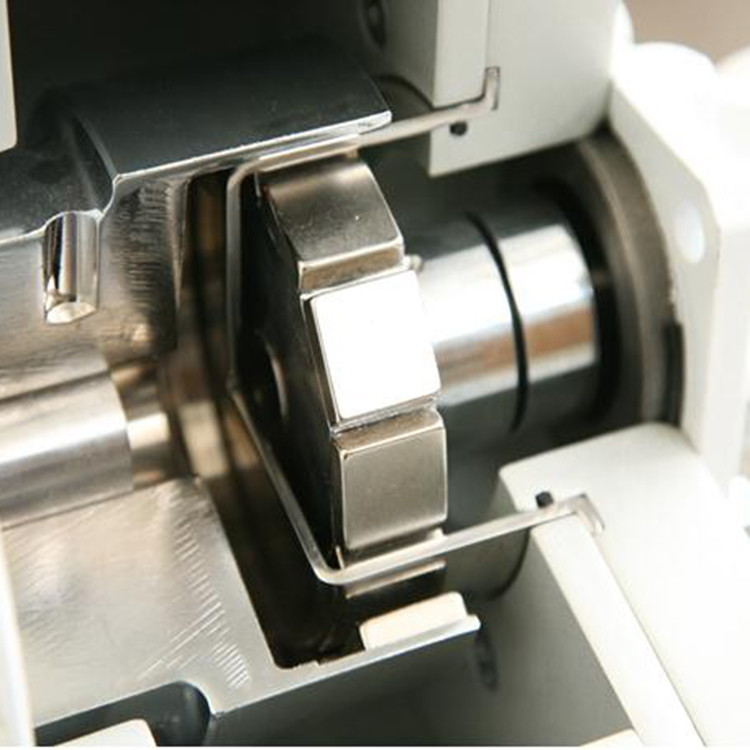

 Flexible Magnetic Coupling for High-End Machine 2Flexible Magnetic Coupling for High-End Machine 3Flexible Magnetic Coupling for High-End Machine 4Flexible Magnetic Coupling for High-End Machine 5

Company Information

CHONGQING GREAT WELL MAGNET CO., LTD. is a manufacturer and exporter all sorts of magnets and magnetic components.

Up to this present day, our magnets and magnetic components have been exported to U.S.A, Europe, Korea, Japan and Taiwan etc.

Our customers: Emerson and others abroad, domestic Huawei and ZTE.

Production Flow

Flexible Magnetic Coupling for High-End Machine 6

Packaging & Shipping

Flexible Magnetic Coupling for High-End Machine 7
