Place of Origin: | Chongqing, China |
---|---|
Brand Name: | Great wall |
Model Number: | Neodymium Magnet |
Minimum Order Quantity: | 100 Piece/Pieces |
Price: | $0.50 - $200.00 / Piece |
Packaging Details: | Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton. |
Supply Ability: | 1000000 Piece/Pieces per Month |
Type: | Permanent, Permanent | Composite: | Neodymium Magnet, Neodymium Magnet |
---|---|---|---|
Shape: | Sheet, Sheet,arc,block,coil,disc | Application: | Industrial Magnet |
Tolerance: | ±20%, 0.01mm ~ 0.05mm | Processing Service: | Cutting |
Grade: | Neodymium Magnet, N40 N50 N52 N54 | Size: | Customized Magnet Size |
Color: | Silver | Packing: | Carton |
Max Working Temperature: | 80-120 | Usage: | Industrial Magnet |
Port: | Shanghai | ||
High Light: | cylindrical rare earth magnets,n52 cylindrical rare earth magnets,large n52 neodymium magnets |
Product Name
|

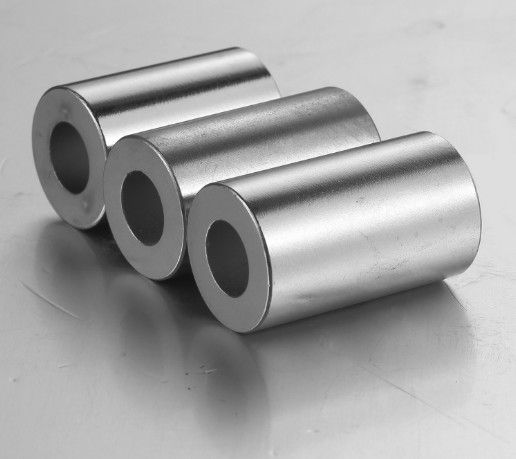

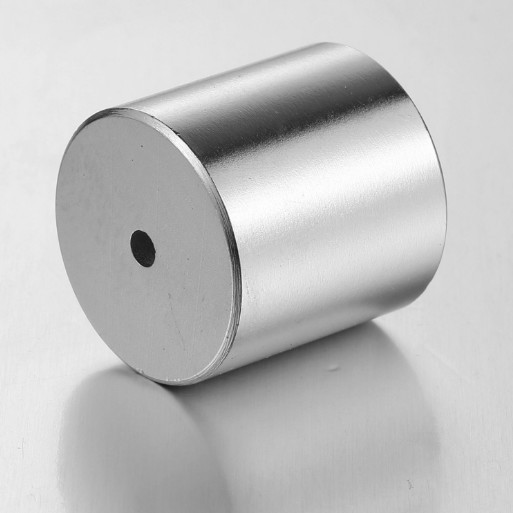

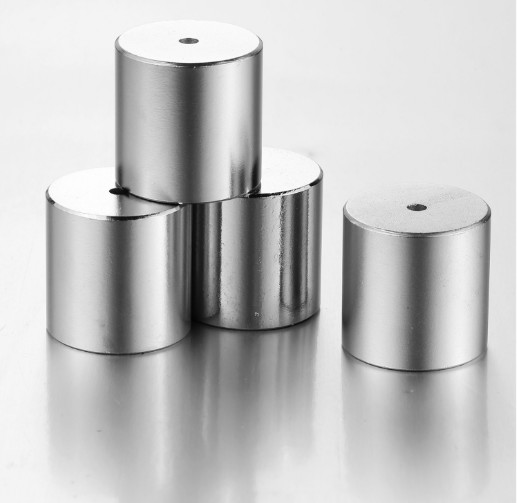

Large Custom Shape 0.3mm 0.8mm Cylinder Neodymium Magnets 40X40X20 Magnet N52
|
Place of Origin
|
Chongqing,China
|
Size
|
Customised
|
Application
|
sensor/education/science
|
Material
|
AlNiCo
|
Certification
|
ROHS
|
Tolerance
|
0/01---+/-0.05mm
|
Features
|
Environment Friendly
|
Directions of Magnetization
|
Customized
|
Magnetic Performance
Item | Grade | Remanence; | Coercivity; | Coercivity Force; | Max BH Product; | Working | ||||||||
Br | HcB | HcJ | (BH)max | Temp. | ||||||||||
KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m | °C | ||||||
Max. | Min. | Max. | Min. | Max | Min. | Max. | Min. | |||||||
N | N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥10.5 | ≥836 | >=12 | >=954 | 42 | 38 | 334 | 289 | ≤80 |
N42 | 13.5 | 12.9 | 1.35 | 1.3 | ≥10.5 | ≥836 | >=12 | >=954 | 44 | 40 | 350 | 318 | ≤80 | |
N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥10.5 | ≥836 | >=12 | >=954 | 46 | 42 | 366 | 334 | ≤80 | |
N48 | 14.2 | 13.7 | 1.43 | 1.37 | ≥10.5 | ≥836 | >=11 | >=876 | 49 | 45 | 390 | 358 | ≤80 | |
N50 | 14.5 | 14.0 | 1.45 | 1.4 | ≥10.5 | ≥836 | >=11 | >=876 | 51 | 47 | 406 | 374 | <=80 | |
N52 | 14.8 | 14.4 | 1.48 | 1.44 | ≥10.5 | >=836 | >=11 | >=876 | 53 | 49 | 422 | 390 | <=80 | |
N55 | 1.52 | 14.6 | 1.52 | 1.46 | ≥9.0 | >=716 | ≥11.0 | >=876 | 56 | 52 | 446 | 414 | <=80 | |
M | N38M | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <=100 |
N40M | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 289 | <=100 | |
N42M | 13.5 | 12.9 | 1.35 | 1.3 | ≥12.0 | >=955 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <=100 | |
N45M | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.5 | >=994 | >=14 | >=1114 | 46 | 42 | 366 | 334 | <=100 | |
N48M | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.8 | >=1018 | >=14 | >=1114 | 49 | 45 | 390 | 358 | <=100 | |
N50M | 14.5 | 14 | 1.45 | 1.4 | ≥13.0 | >=1042 | >=14 | >=1114 | 51 | 47 | 406 | 374 | <=100 | |
N52M | 14.8 | 14.2 | 1.48 | 1.42 | ≥13.0 | >=1035 | >=14 | >=1114 | 53 | 48.5 | 422 | 386 | <=100 | |
H | N35H | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=875 | >=17 | >=1353 | 37 | 33 | 295 | 263 | <=120 |
N38H | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=17 | >=1353 | 40 | 36 | 318 | 287 | <=120 | |
N41H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=17 | >=1274 | 42 | 38 | 334 | 302 | <=120 | |
N44H | 13.7 | 13 | 1.37 | 1.3 | ≥12.1 | >=963 | >=16 | >=1274 | 45 | 41 | 358 | 326 | <=120 | |
N46H | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.2 | >=971 | >=16 | >=1274 | 47 | 43 | 374 | 342 | <=120 | |
N48H | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.7 | >=1011 | >=16 | >=1274 | 49 | 45 | 390 | 358 | <=120 | |
SH | N35SH | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <=150 |
N39SH | 13 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=923 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <=150 | |
N42SH | 13.2 | 12.9 | 1.32 | 1.26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <=150 | |
N44SH | 13.7 | 13 | 1.37 | 1.3 | >=12.1 | >=963 | >=20 | >=1592 | 45 | 41 | 358 | 326 | <=150 | |
N46SH | 13.8 | 13.4 | 1.38 | 1.34 | >=12.5 | >=965 | >=20 | >=1592 | 47 | 43 | 374 | 342 | <=150 | |
UH | N33UH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=25 | >=1990 | 35 | 31 | 279 | 2247 | <=180 |
N35UH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <=180 | |
N38UH | 13 | 12.3 | 1.3 | 1.23 | >=11.6 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <=180 | |
N40UH | 13.2 | 12.6 | 1.32 | 1.26 | >=10.5 | >=836 | >=25 | >=1990 | 42 | 38 | 334 | 289 | <=180 | |
EH | N30EH | 11.7 | 10.9 | 1.17 | 1.09 | >=10.2 | >=812 | >=30 | >=2388 | 32 | 28 | 255 | 223 | <=200 |
N33EH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=30 | >=2388 | 35 | 31 | 279 | 2247 | <=200 | |
N35EH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <=200 | |
N38EH | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=30 | >=2387 | 40 | 36 | 318 | 287 | <=200 | |
AH | N28AH | 11 | 10.4 | 1.1 | 1.04 | >=9.70 | >=772 | >=35 | >=2786 | 29 | 26 | 231 | 207 | <=220 |
N30AH | 11.7 | 10.8 | 1.17 | 1.08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <=220 | |
N33AH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=35 | >=2786 | 35 | 31 | 279 | 247 | <=220 | |
N35AH | 12.5 | 11.7 | 1.25 | 1.17 | >=11.0 | >=876 | >=35 | >=2386 | 37 | 33 | 295 | 263 | <=220 |
