Good price online

products details

Home > Products >
Bonded Neodymium Magnet
>
NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet
All Category

Neodymium Permanent Magnets

Ferrite Permanent Magnets

Neodymium Arc Magnets

Neodymium Disc Magnets

Custom Permanent Magnetic Assembly

Permanent Magnetic Coupling

Bonded Neodymium Magnet

Electric Motor Permanent Magnet

Samarium Cobalt Magnet
Contact Us
Joy Liu
6
6
Contact Now
NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet
  • Name
  • Name
  • Name
  • Name

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet

Model Number: GWM-367
MOQ: 100
Price: USD0.50~3.00
Packaging Details: Pallet with carton
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001:2008, ROHS, REACH
Item:
Bonded Neodymium Magnet
Shaped:
Arc-Segment Shaped
Usage:
Motor And Pump
Certification:
ISO9001:2008, ROHS, REACH
Highlight:

NdFeB Bonded Neodymium Magnet

,

Bonded Neodymium Magnet

,

arc smco magnet

Product Description

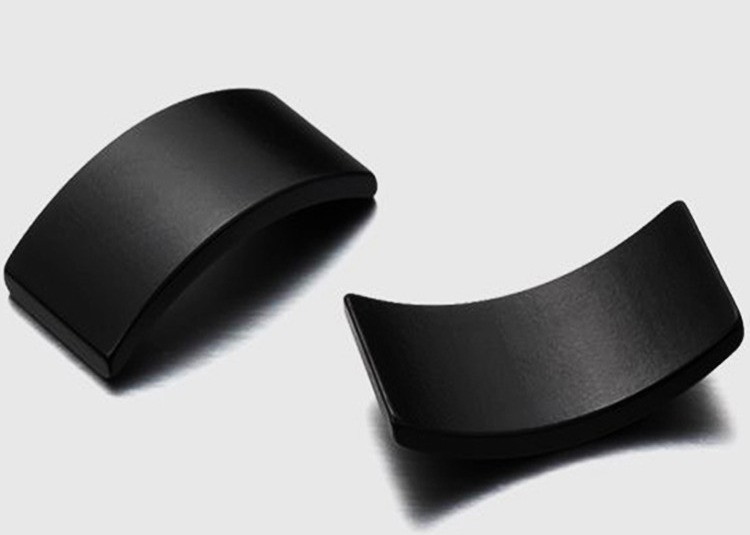

Arc-Segment Shaped Bonded Neodymium NdFeB Magnet For Motor And Pump





DESCRIPTION OF PRODUCTS



Bonded NdFeB magnets are manufactured by binding rapid-quenching NdFeB powder. The powder is mixed with resin to form a magnet by compression molding with epoxy or infection molding with nylon. The latter technique is particular effective in large volume production, though the magnetic value of products is lower than those made with compression molding because of their relatively lower density. Various shapes of high dimensional accuracy can be produced without further processing. Surface is treated by epoxy coating or nickel-plating to prevent corrosion

With different ratio of additives to NdFeB powder, magnetic properties of hybrid NdFeB magnets can be tuned in a wide range. Once the ratio is fixed, magnetic property fluctuation can still be limited in a narrow bank. Hybrid magnets will meet customerˇŻs specified properties.

Rapidly quenched NdFeB powder used for bonded magnets is multi grain with grain size of sub-micron. Powder is isotropic in magnetic properties, which results in flat increasing of remanence and intrinsic coercivity with applied field. Magnet can only be magnetized to saturation in high fields.

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet 0



Bonded NdFeB Magnets (Injection Molded)



Typical Magnetic Properties



Grade Max. Energy Product Remanence Coercive Force Rev. Temp. Coeff. Working Temp. Density
(BH)max Br Hc Hci Bd Hd Tc D
MGOe kJ/m3 T kOe kA/m kOe kA/m %/°C %/°C °C g/cm3
BNI-2 0.8-3.0 6.4-24 0.2-0.4 1.5-3.0 120-240 7.0-9.0 560-720 -0.15 -0.4 130 3.5-4.0
BNI-4 3.5-4.5 28-36 0.4-0.49 3.1-3.9 247-310 7.2-9.2 573-732 -0.1 -0.4 180 4.0-5.0
BNI-6 5.2-7.0 42-56 0.49-0.57 3.9-4.8 312-382 8.0-10.0 637-796 -0.1 -0.4 150 5.0-5.5
BNI-8 7.4-8.4 59-67 0.57-0.63 4.8-5.4 382-430 8.5-10.5 676-835 -0.1 -0.4 150 5.0-5.5
BNI-6H 5.0-6.5 40-52 0.48-0.56 4.2-5.0 334-398 13.0-17.0 1035-1353 -0.15 -0.4 180 5.0-5.5



Bonded NdFeB Magnets(Compression Bonded)


Typical Magnetic Properties



Grade Max. Energy Product Remanence Coercive Force Rev. Temp. Working Temp. Density
Coeff.
(BH)max Br Hc Hci Bd Hd Tw D
MGOe kJ/m3 T kOe kA/m kOe kA/m %/°C %/°C °C g/cm3
BNP-6 5.0-7.0 40-56 0.52-0.60 3.8-4.5 304-360 8.0-10 640-800 -0.1 -0.4 140 5.3-5.8
BNP-8 7.0-9.0 56-72 0.60-0.65 4.5-5.5 360-440 8.0-12 640-960 -0.1 -0.4 140 5.6-6.0
BNP-10 9.0-10.0 72-80 0.65-0.70 4.5-5.8 360-464 8.0-12 640-960 -0.1 -0.4 120 5.8-6.1
BNP-12 10.0-12.0 80-96 0.70-0.76 5.8-6.0 424-480 8.0-11 640-880 -0.1 -0.4 130 6.0-6.2
BNP-8H 6.0-9.0 48-72 0.55-0.62 5.0-6.0 400-480 12月16日 960-1280 -0.07 -0.4 120 5.6-6.0



Production Flow Chart

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet 1







Tags:

arc smco magnet

Bonded Neodymium Magnet

NdFeB Bonded Neodymium Magnet

Good price online

Products Details

Home > Products >
Bonded Neodymium Magnet
>
NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet
All Category

Neodymium Permanent Magnets

Ferrite Permanent Magnets

Neodymium Arc Magnets

Neodymium Disc Magnets

Custom Permanent Magnetic Assembly

Permanent Magnetic Coupling

Bonded Neodymium Magnet

Electric Motor Permanent Magnet

Samarium Cobalt Magnet
NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet
  • Name
  • Name
  • Name
  • Name

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet

Model Number: GWM-367
MOQ: 100
Price: USD0.50~3.00
Packaging Details: Pallet with carton
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001:2008, ROHS, REACH
Model Number:
GWM-367
Item:
Bonded Neodymium Magnet
Shaped:
Arc-Segment Shaped
Usage:
Motor And Pump
Certification:
ISO9001:2008, ROHS, REACH
Minimum Order Quantity:
100
Price:
USD0.50~3.00
Packaging Details:
Pallet with carton
Delivery Time:
2~4 weeks
Payment Terms:
L/C, T/T
Highlight:

NdFeB Bonded Neodymium Magnet

,

Bonded Neodymium Magnet

,

arc smco magnet

Product Description

Arc-Segment Shaped Bonded Neodymium NdFeB Magnet For Motor And Pump





DESCRIPTION OF PRODUCTS



Bonded NdFeB magnets are manufactured by binding rapid-quenching NdFeB powder. The powder is mixed with resin to form a magnet by compression molding with epoxy or infection molding with nylon. The latter technique is particular effective in large volume production, though the magnetic value of products is lower than those made with compression molding because of their relatively lower density. Various shapes of high dimensional accuracy can be produced without further processing. Surface is treated by epoxy coating or nickel-plating to prevent corrosion

With different ratio of additives to NdFeB powder, magnetic properties of hybrid NdFeB magnets can be tuned in a wide range. Once the ratio is fixed, magnetic property fluctuation can still be limited in a narrow bank. Hybrid magnets will meet customerˇŻs specified properties.

Rapidly quenched NdFeB powder used for bonded magnets is multi grain with grain size of sub-micron. Powder is isotropic in magnetic properties, which results in flat increasing of remanence and intrinsic coercivity with applied field. Magnet can only be magnetized to saturation in high fields.

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet 0



Bonded NdFeB Magnets (Injection Molded)



Typical Magnetic Properties



Grade Max. Energy Product Remanence Coercive Force Rev. Temp. Coeff. Working Temp. Density
(BH)max Br Hc Hci Bd Hd Tc D
MGOe kJ/m3 T kOe kA/m kOe kA/m %/°C %/°C °C g/cm3
BNI-2 0.8-3.0 6.4-24 0.2-0.4 1.5-3.0 120-240 7.0-9.0 560-720 -0.15 -0.4 130 3.5-4.0
BNI-4 3.5-4.5 28-36 0.4-0.49 3.1-3.9 247-310 7.2-9.2 573-732 -0.1 -0.4 180 4.0-5.0
BNI-6 5.2-7.0 42-56 0.49-0.57 3.9-4.8 312-382 8.0-10.0 637-796 -0.1 -0.4 150 5.0-5.5
BNI-8 7.4-8.4 59-67 0.57-0.63 4.8-5.4 382-430 8.5-10.5 676-835 -0.1 -0.4 150 5.0-5.5
BNI-6H 5.0-6.5 40-52 0.48-0.56 4.2-5.0 334-398 13.0-17.0 1035-1353 -0.15 -0.4 180 5.0-5.5



Bonded NdFeB Magnets(Compression Bonded)


Typical Magnetic Properties



Grade Max. Energy Product Remanence Coercive Force Rev. Temp. Working Temp. Density
Coeff.
(BH)max Br Hc Hci Bd Hd Tw D
MGOe kJ/m3 T kOe kA/m kOe kA/m %/°C %/°C °C g/cm3
BNP-6 5.0-7.0 40-56 0.52-0.60 3.8-4.5 304-360 8.0-10 640-800 -0.1 -0.4 140 5.3-5.8
BNP-8 7.0-9.0 56-72 0.60-0.65 4.5-5.5 360-440 8.0-12 640-960 -0.1 -0.4 140 5.6-6.0
BNP-10 9.0-10.0 72-80 0.65-0.70 4.5-5.8 360-464 8.0-12 640-960 -0.1 -0.4 120 5.8-6.1
BNP-12 10.0-12.0 80-96 0.70-0.76 5.8-6.0 424-480 8.0-11 640-880 -0.1 -0.4 130 6.0-6.2
BNP-8H 6.0-9.0 48-72 0.55-0.62 5.0-6.0 400-480 12月16日 960-1280 -0.07 -0.4 120 5.6-6.0



Production Flow Chart

NdFeB Bonded Neodymium Magnet , Motor / Pump Arc Smco Magnet 1







Tags:

arc smco magnet

Bonded Neodymium Magnet

NdFeB Bonded Neodymium Magnet
