| Model Number: | Neodymium Magnet |
| MOQ: | 100 Piece/Pieces |
| Price: | $0.50 - $200.00 / Piece |
| Packaging Details: | Magnetism shield package for the Express and Air shipments by putting iron sheets/plates between foam form and outer carton. |

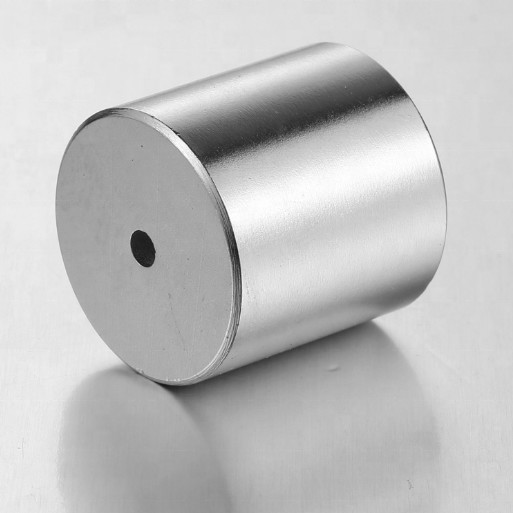

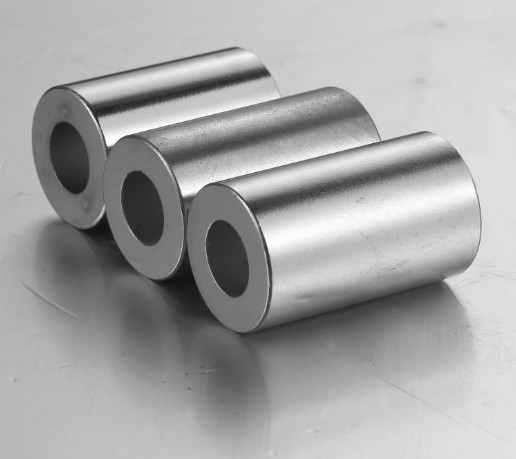

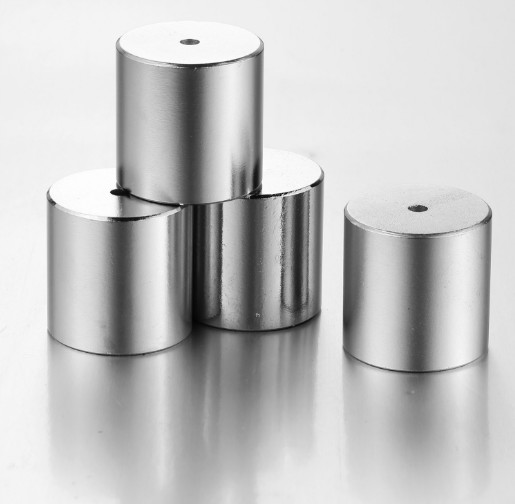

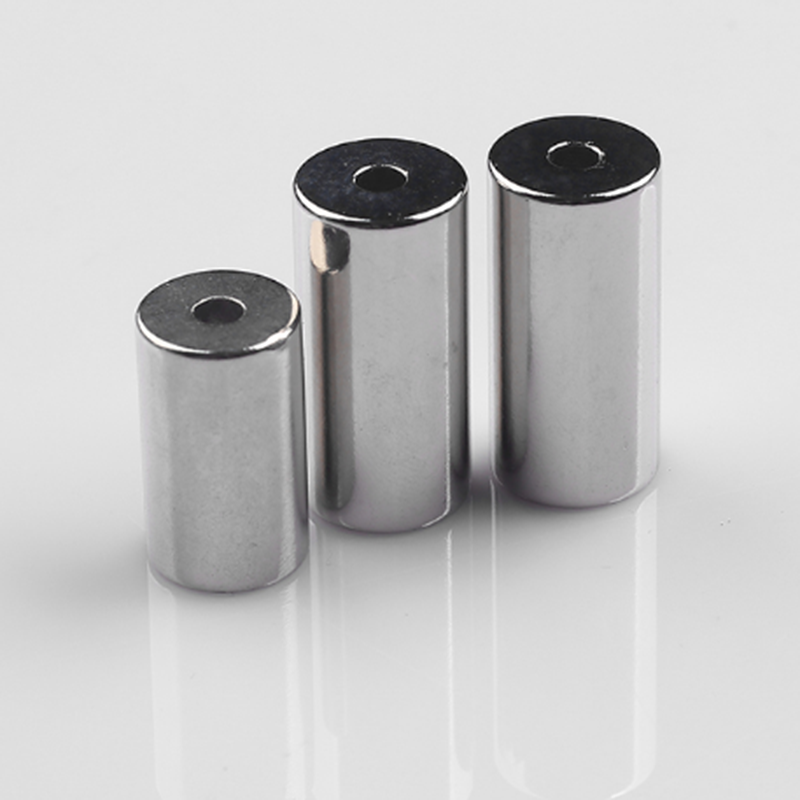

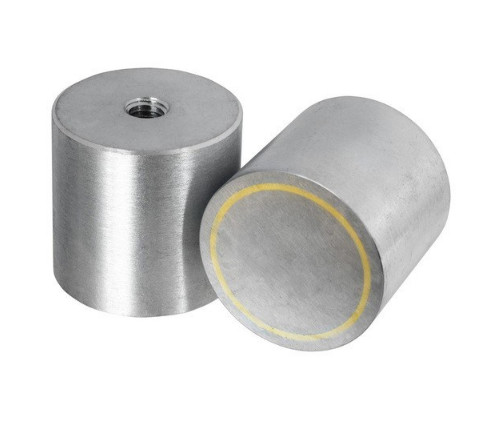

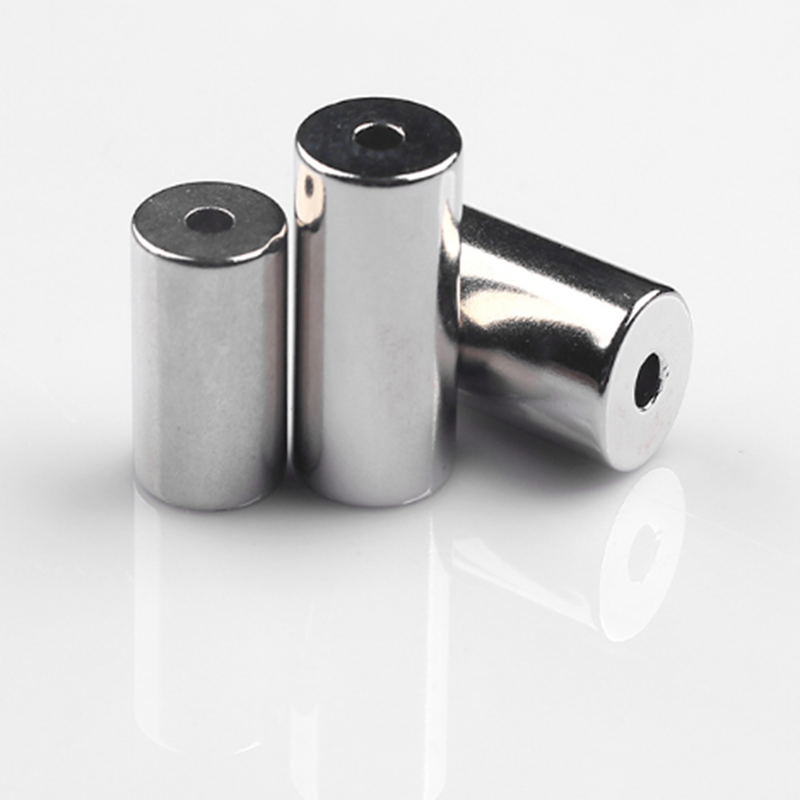

N55 Neodymium Magnet Cylinder Permanent Magnets For Stator Rotor
Description
NdFeB permanent magnet is also called hard neodymium magnet, and the magnet that can keep magnetism for a long time is called permanent magnet. Such as natural magnet (magnetite) and artificial magnet (al Ni Co alloy). In addition to permanent magnets, there are electromagnets that need to be energized to be magnetic. Nd-Fe-B permanent magnets are not easy to be demagnetized and magnetized.
NdFeB permanent magnet is a kind of energy storage material, which can produce a constant magnetic field in a certain space. Because of its high coercivity and magnetic energy product, especially its excellent performance compared with other permanent magnets at 20 ℃ ~ 150 ℃, neodymium permanent magnets have been widely used in many fields, especially in modern high-tech fields.
Neodymium magnets have been widely used in many fields, especially in modern high-tech fields. Its application can be divided into the following categories: 1. Electric mechanical energy conversion, such as motor, loudspeaker, VCM voice coil motor, etc; 2. Mechanical energy - electric energy conversion, such as: generator, receiver, measuring instrument, etc; 3. Mechanical energy -- mechanical energy, such as magnetic separation, magnetic suspension, magnetic transmission, magnetic suspension, magnetic sucker, etc; 4. Using the physical effects of magnetic field, such as magnetic resonance, magnetization dewaxing, magnetization oil saving, etc.
|
Product Name
|
Factory Cheap Price N55 Neodymium Magnet Cylinder Permanent Magnets For Stator Rotor
|
|
Place of Origin
|
Chongqing,China
|
|
Size
|
Customised
|
|
Application
|
sensor/education/science
|
|
Material
|
AlNiCo
|
|
Certification
|
ROHS
|
|
Tolerance
|
0/01---+/-0.05mm
|
|
Features
|
Environment Friendly
|
|
Directions of Magnetization
|
Customized
|
| Item | Grade | Remanence; | Coercivity; | Coercivity Force; | Max BH Product; | Working | ||||||||
| Br | HcB | HcJ | (BH)max | Temp. | ||||||||||
| KGs | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m | °C | ||||||
| Max. | Min. | Max. | Min. | Max | Min. | Max. | Min. | |||||||
| N | N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥10.5 | ≥836 | >=12 | >=954 | 42 | 38 | 334 | 289 | ≤80 |
| N42 | 13.5 | 12.9 | 1.35 | 1.3 | ≥10.5 | ≥836 | >=12 | >=954 | 44 | 40 | 350 | 318 | ≤80 | |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥10.5 | ≥836 | >=12 | >=954 | 46 | 42 | 366 | 334 | ≤80 | |
| N48 | 14.2 | 13.7 | 1.43 | 1.37 | ≥10.5 | ≥836 | >=11 | >=876 | 49 | 45 | 390 | 358 | ≤80 | |
| N50 | 14.5 | 14.0 | 1.45 | 1.4 | ≥10.5 | ≥836 | >=11 | >=876 | 51 | 47 | 406 | 374 | <=80 | |
| N52 | 14.8 | 14.4 | 1.48 | 1.44 | ≥10.5 | >=836 | >=11 | >=876 | 53 | 49 | 422 | 390 | <=80 | |
| N55 | 1.52 | 14.6 | 1.52 | 1.46 | ≥9.0 | >=716 | ≥11.0 | >=876 | 56 | 52 | 446 | 414 | <=80 | |
| M | N38M | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <=100 |
| N40M | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 289 | <=100 | |
| N42M | 13.5 | 12.9 | 1.35 | 1.3 | ≥12.0 | >=955 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <=100 | |
| N45M | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.5 | >=994 | >=14 | >=1114 | 46 | 42 | 366 | 334 | <=100 | |
| N48M | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.8 | >=1018 | >=14 | >=1114 | 49 | 45 | 390 | 358 | <=100 | |
| N50M | 14.5 | 14 | 1.45 | 1.4 | ≥13.0 | >=1042 | >=14 | >=1114 | 51 | 47 | 406 | 374 | <=100 | |
| N52M | 14.8 | 14.2 | 1.48 | 1.42 | ≥13.0 | >=1035 | >=14 | >=1114 | 53 | 48.5 | 422 | 386 | <=100 | |
| H | N35H | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=875 | >=17 | >=1353 | 37 | 33 | 295 | 263 | <=120 |
| N38H | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=915 | >=17 | >=1353 | 40 | 36 | 318 | 287 | <=120 | |
| N41H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | >=939 | >=17 | >=1274 | 42 | 38 | 334 | 302 | <=120 | |
| N44H | 13.7 | 13 | 1.37 | 1.3 | ≥12.1 | >=963 | >=16 | >=1274 | 45 | 41 | 358 | 326 | <=120 | |
| N46H | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.2 | >=971 | >=16 | >=1274 | 47 | 43 | 374 | 342 | <=120 | |
| N48H | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.7 | >=1011 | >=16 | >=1274 | 49 | 45 | 390 | 358 | <=120 | |
| SH | N35SH | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <=150 |
| N39SH | 13 | 12.3 | 1.3 | 1.23 | ≥11.6 | >=923 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <=150 | |
| N42SH | 13.2 | 12.9 | 1.32 | 1.26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <=150 | |
| N44SH | 13.7 | 13 | 1.37 | 1.3 | >=12.1 | >=963 | >=20 | >=1592 | 45 | 41 | 358 | 326 | <=150 | |
| N46SH | 13.8 | 13.4 | 1.38 | 1.34 | >=12.5 | >=965 | >=20 | >=1592 | 47 | 43 | 374 | 342 | <=150 | |
| UH | N33UH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=25 | >=1990 | 35 | 31 | 279 | 2247 | <=180 |
| N35UH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <=180 | |
| N38UH | 13 | 12.3 | 1.3 | 1.23 | >=11.6 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <=180 | |
| N40UH | 13.2 | 12.6 | 1.32 | 1.26 | >=10.5 | >=836 | >=25 | >=1990 | 42 | 38 | 334 | 289 | <=180 | |
| EH | N30EH | 11.7 | 10.9 | 1.17 | 1.09 | >=10.2 | >=812 | >=30 | >=2388 | 32 | 28 | 255 | 223 | <=200 |
| N33EH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=30 | >=2388 | 35 | 31 | 279 | 2247 | <=200 | |
| N35EH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <=200 | |
| N38EH | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=30 | >=2387 | 40 | 36 | 318 | 287 | <=200 | |
| AH | N28AH | 11 | 10.4 | 1.1 | 1.04 | >=9.70 | >=772 | >=35 | >=2786 | 29 | 26 | 231 | 207 | <=220 |
| N30AH | 11.7 | 10.8 | 1.17 | 1.08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <=220 | |
| N33AH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=35 | >=2786 | 35 | 31 | 279 | 247 | <=220 | |
| N35AH | 12.5 | 11.7 | 1.25 | 1.17 | >=11.0 | >=876 | >=35 | >=2386 | 37 | 33 | 295 | 263 | <=220 | |
|
|
