Place of Origin: | China |
---|---|
Brand Name: | GWM |
Certification: | IATF16949,ISO140001 |
Model Number: | GWM-3692 |
Minimum Order Quantity: | 10 |
Packaging Details: | Pallet with carton |
Delivery Time: | 30~45 days |
Payment Terms: | T/T or L/C |
Magnetization Direction: | Axial, Radial, Halbach | Pull Force: | Customized |
---|---|---|---|
Max Working Temperature: | 80℃~350℃ | Material: | Ferrite Magnets, Neo Magnet, SmCo Magnet |
Flux Density: | ≥1.4T | Operating Temperature: | 80℃~350℃ |
Size: | Customized | ||
Highlight: | Disc Permanent Magnetic Coupling,Residual Induction Permanent Magnetic Coupling,Customized Magnetic Shaft Coupling |

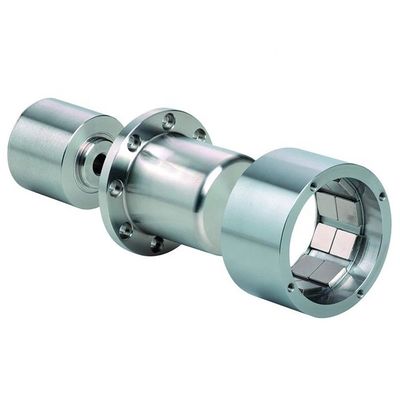

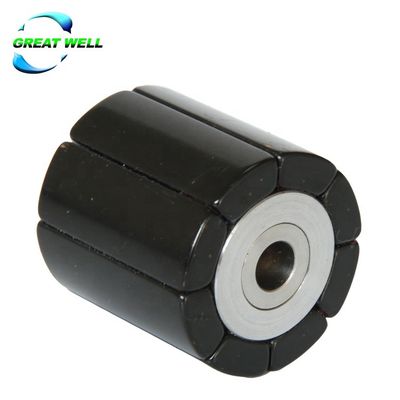

Permanent Magnetic Coupling is a type of magnetic coupling device specially designed for applications that require reliable sealing, anti-vibration, low noise and high torque transmission. It is mainly composed of ferrite magnets, neodymium magnets and samarium cobalt magnets, and the magnetization direction is axial. The high-performance magnets are arranged in an Halbach array, with a flux density of more than 1.4T and a residual induction of more than 1.2T. The maximum working temperature can reach from 80℃ to 350℃, making the device suitable for a wide range of applications. Its reliable sealing, anti-vibration, low-noise and high-torque transmission make it an ideal choice for many industries.
Parameter | Value |
---|---|
Magnetization Direction | Axial, Radial, Halbach |
Pull Force | Customized |
Max Working Temperature | 80℃~350℃ |
Material | Ferrite Magnets, Neo Magnet, SmCo Magnet |
Surface Treatment | Nickel Plating |
Residual Induction | ≥1.2T |
Coercive Force | ≥1250kA/m |
Operating Temperature | 80℃~350℃ |
Application | Motor, Generator, Automotive |
Flux Density | ≥1.4T |
Keywords | Reliable sealing, Permanet Magnet, Halbach array |
GWM Permanent Magnetic Coupling is the perfect solution for applications where high reliability, high efficiency and low maintenance are required. With its magnetic circuit design, Halbach array, Halbach array, and permanent magnet technology, GWM-3692 is the best choice for applications with demanding requirements. It features a maximum working temperature of 80℃~350℃, a pull force customized to fit the application, a maximum energy product of ≥12MGOe, and a flux density of ≥1.4T. It is certified with IATF16949 and ISO140001 and has a minimum order quantity of 10. The packaging is pallet with carton and the delivery time is 30~45 days. The payment term is either T/T or L/C, and it is sure to meet your application needs.
High sealing requirements: Since the magnetic coupling adopts the magnetic coupling principle, force and torque can be transmitted between the driving shaft and the driven shaft without direct contact, and the dynamic seal is converted into a static seal. Achieve zero leakage. Therefore, it is especially suitable for occasions that require high sealing performance, such as sealed transmission machinery in chemical, electroplating, papermaking, pharmaceutical, food, vacuum and other industries.
Variable load impacts, frequent starts, and forward and reverse rotation: Magnetic couplings have the advantages of overload protection and reduced vibration and friction. They are suitable for applications that withstand variable load impacts, frequent starts, and forward and reverse rotation requirements, such as mining machinery. Equipment (such as gravel crusher), fans, water pumps, etc.
where the axis cannot be strictly aligned: The magnetic coupling can effectively solve the problem of the axis not being strictly aligned and ensure the stability and reliability of the transmission.
Special environment: Magnetic couplings can withstand harsh environments such as high temperature, high pressure, corrosion, etc., and have excellent weather resistance and durability, making them suitable for these special occasions.
Specific industry applications: Magnetic couplings have been widely used in devices and equipment that require permanent magnetic fields in aviation, aerospace, electronics, electroacoustics, electromechanical, instruments, meters, antennas and other fields. Especially in coal, metallurgy, cement and other industries, magnetic couplings have been widely used due to their advantages of improving production efficiency and safety, energy saving and environmental protection, and simple installation and maintenance.
We have full production line of ferrite, Neodymium magnet and magnet assembly production line.
During these years, we have take part in the exhibiton home and abroad, expecially CWIEME and Coiltech, these two special exhibihions, we have attended every year.
Our technical support and service for Permanent Magnetic Coupling products includes:
Permanent Magnetic Coupling products are packaged in individual boxes for secure transport. The boxes are made of cardboard and designed to protect against moisture and dust. Each box is labeled with the product name and product model, which helps ensure accurate delivery.
The products will be securely packaged and shipped according to the customer's requirements. We offer various shipping options, including express delivery, standard delivery, and air freight. We can also provide tracking information for all orders.
A1: Permanent Magnetic Coupling is a mechanical device that utilizes magnetic force to transmit torque between two or more shafts.
A2: The brand of Permanent Magnetic Coupling is GWM and the model number is GWM-3692.
A3: The Permanent Magnetic Coupling is made in China.
A4: The Permanent Magnetic Coupling has IATF16949 and ISO140001 certifications.
A5: The minimum order quantity for the Permanent Magnetic Coupling is 10.
